EGR Cooler Switch-Over VALVEN345 1 (Engine Codes CRFA And CRFC Only)

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

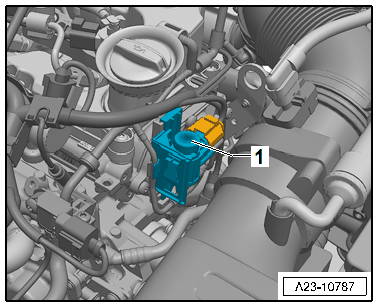

Fig 1: EGR Cooler Switch-Over Valve Component Location (N345)
GWWA23-10787Courtesy of AUDI OF AMERICA, LLC
