Connectors (Only For Engine Codes CRFA And CRFC)

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

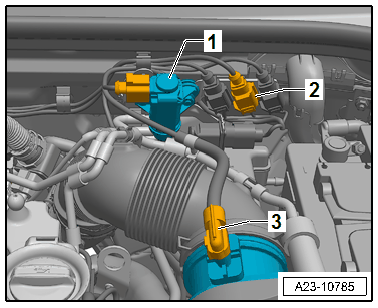

Fig 1: Connectors (Only for Engine Codes CRFA and CRFC)
GWWA23-10785Courtesy of AUDI OF AMERICA, LLC
  1. Wastegate Bypass Regulator Valve -N75-
  2. EGR Temperature Sensor -G98-
  3. Mass Airflow Sensor -G70-
