Component Location - Clutch Position Sensor G476

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

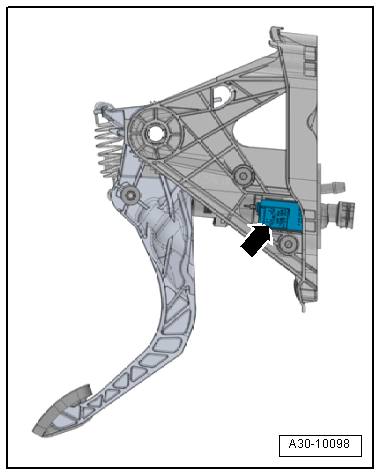

Fig 1: Component Location Clutch Position Sensor -G476-

Courtesy of AUDI OF AMERICA, LLC

On The Clutch Pedal Bracket -arrow-.

Removing and Installing. Refer to the appropriate service information. .

Connectors (All Engine Codes Except CRFA & CRFC)

Fig 2: Connectors (All Engine Codes Except CRFA & CRFC)

Courtesy of AUDI OF AMERICA, LLC

Wastegate Bypass Regulator Valve -N75-
Exhaust Gas Temperature Sensor 4 -G648-
Exhaust Gas Temperature Sensor 3 -G495-
Exhaust Gas Temperature Sensor 2 -G448- Equipped Depending on the Exhaust Gas Standard
Heated Oxygen Sensor -G39-
Mass Airflow Sensor -G70-
