Home >> Audi >> 2017 >> S3 Premium Plus >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Wiring Diagram (CHHB, CJXB, CJXC, CJXF, CNTC, CYFB, CJXG, CJXD) -- (A3 Sedan) >> Wiring Diagram(S) >> Engine Control Module, EVAP Canister Purge Regulator Valve 1, Secondary Air Injection Solenoid Valve, Camshaft Adjustment Valve 1, Exhaust Camshaft Adjustment Valve 1, Oil Pressure Regulation Valve, Piston Cooling Nozzle Control Valve >> Notes

Engine Control Module, EVAP Canister Purge Regulator Valve 1, Secondary Air Injection Solenoid Valve, Camshaft Adjustment Valve 1, Exhaust Camshaft Adjustment Valve 1, Oil Pressure Regulation Valve, Piston Cooling Nozzle Control Valve: Notes

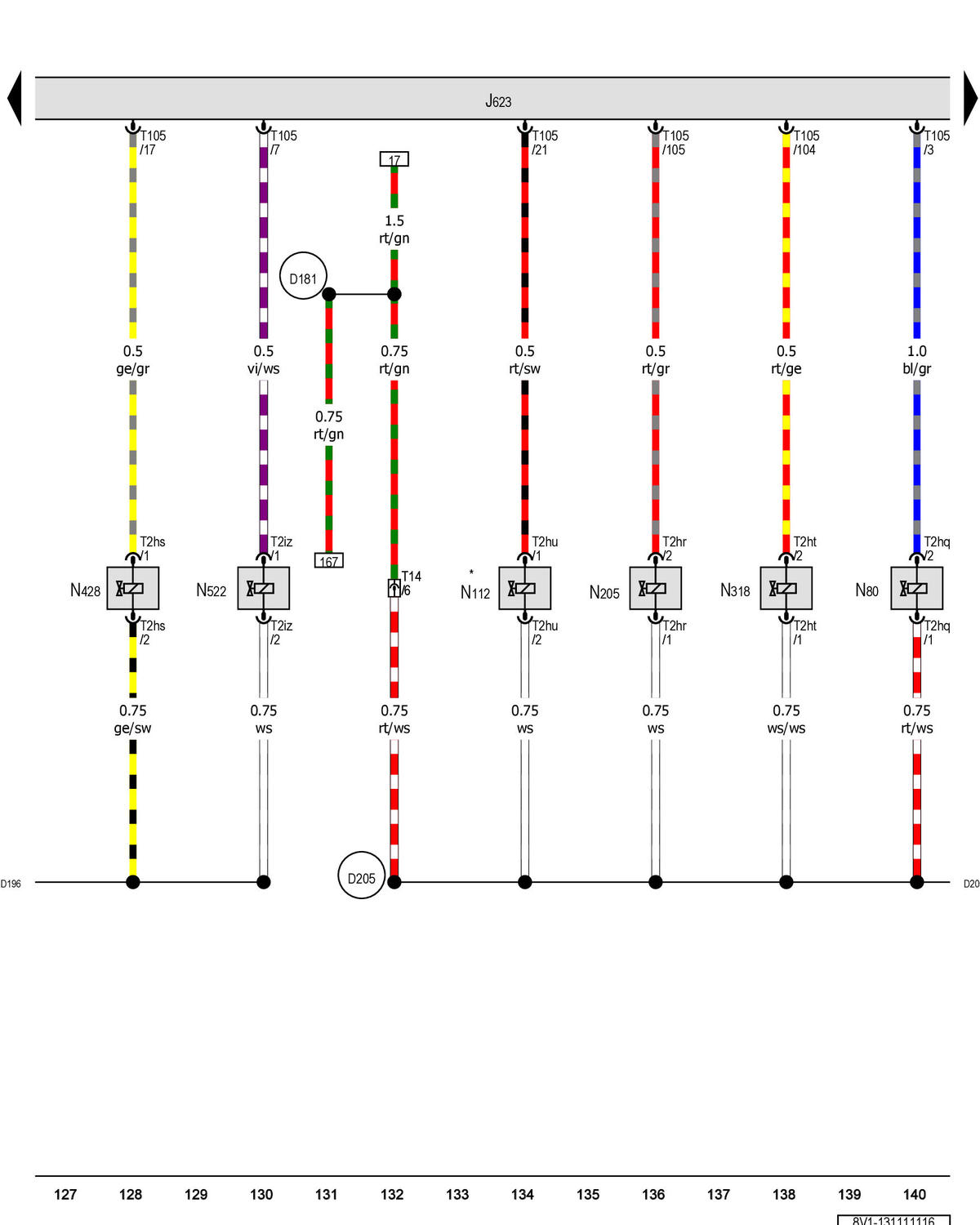

GWW8V1-131111116Courtesy of AUDI OF AMERICA, LLC
