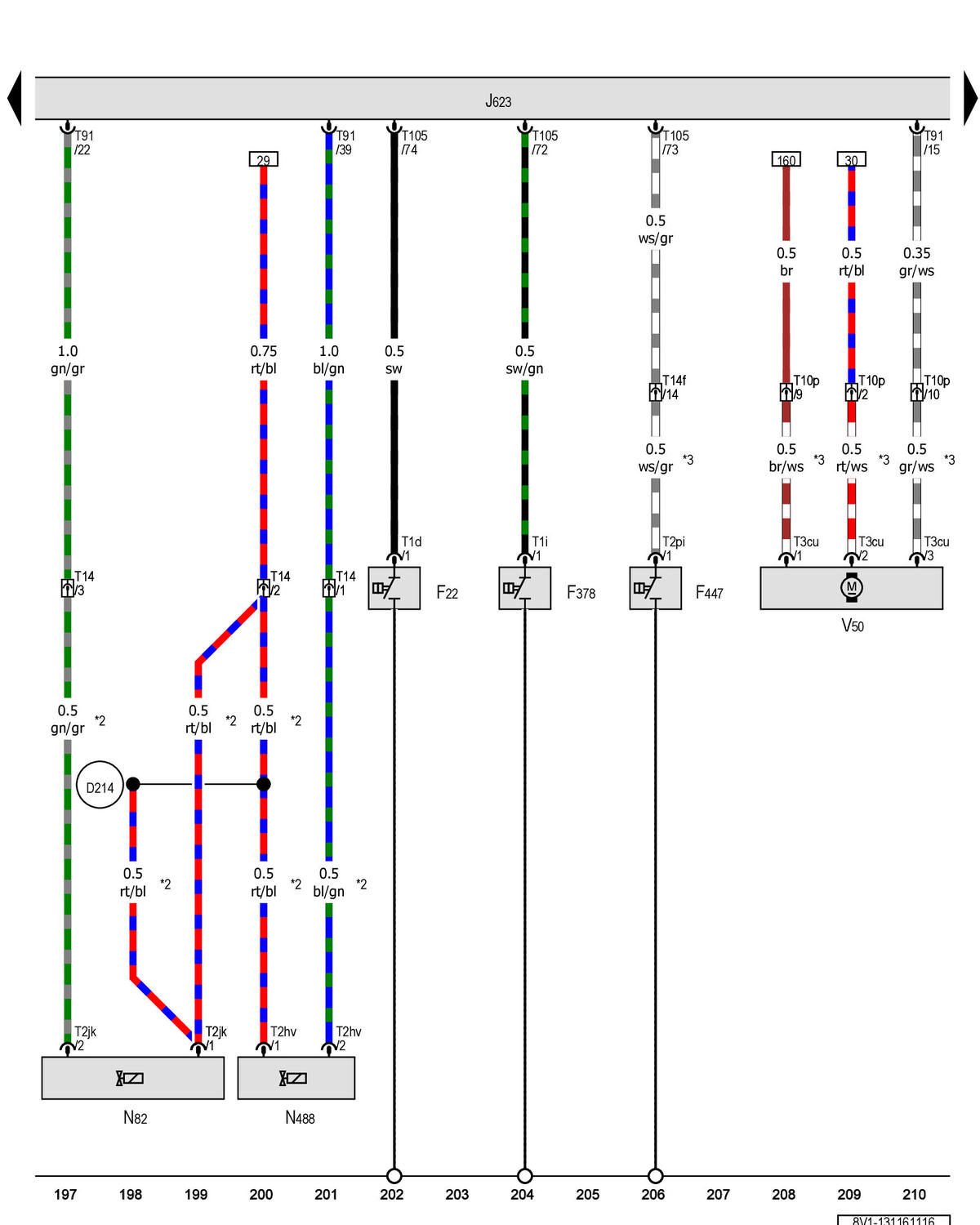

Oil Pressure Switch, Reduced Oil Pressure Switch, Engine Control Module, Coolant Shut-Off Valve, Transmission Coolant Valve: Notes

GWW8V1-131161116
