Brake Pads, Removing And Installing: Notes
NOTE:
Clean the bolts and nuts before reusing.
Always replace self-locking nuts and bolts.
Always replace damaged nuts and bolts.

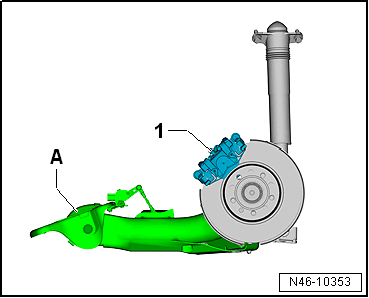

installation position of the brake caliper on a torsion beam axle A :
1 -Brake Caliper
Installation position of multi-link suspension B :
1 -Brake Caliper
Special tools and workshop equipment required
- Vehicle Diagnostic Tester
- Torque Wrench 1331 5-50Nm:VAG1331
- Tool Holder :VAS6564/2 from Brake Bleeding Tool Set:VAS6564
- Torque Wrench 1331 Insert - Ratchet Head:VAS6784
- Piston Resetting Tool:T10145
- Hex Bit - 7mm:T10503
- Lithium Grease:G 052 150 A2 . Refer to the Parts Information.
