Driver And Front Passenger Side Pedestrian Protection Crash Sensor 2 -G851- And -G852-, Removing And Installing, Vehicles From My 2017: Removing
WARNING:
Risk of injury due to involuntary deployment.
- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the bumper cover. Refer to FRONT BUMPER COVER, REMOVING AND INSTALLING .
WARNING:
Risk of injury due to involuntary deployment.
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
-- Disconnect the connector -1- from the crash sensor by pulling out the connector lock -2- and pressing it down -arrow-.
-- Repeat the procedure for the connector on the opposite side.
-- Remove the molded foam part. Refer to MOLDED FOAM PART, REMOVING AND INSTALLING, A3 .

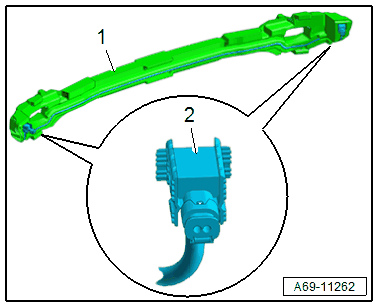

-- The molded foam part -1- cannot be removed from the pedestrian protection crash sensors -2- without destroying it.
