Component Location Overview - Passenger Occupant Detection System

NOTE:

The passenger occupant detection system is only installed in the passenger seat.

WARNING:

The replacement part (Service Kit) for the passenger occupant detection system (market-specific version) is already pre-installed. Never disconnect the connector between the Passenger Occupant Detection System Control Module -J706- and the Front Passenger Occupant Detection Sensor -G128-. The service kit differs depending on the seat version and consists of:

Seat cushion with/without a seat heating element
Front Passenger Occupant Detection Sensor -G128- glued to the seat cushion or the seat heating element
Passenger Occupant Detection System Control Module -J706-

Follow all safety precautions when working on the passenger occupant detection system. Refer to ADDITIONAL SAFETY PRECAUTIONS - PASSENGER OCCUPANT DETECTION SYSTEM DEACTIVATION, MARKET-SPECIFIC .

Courtesy of AUDI OF AMERICA, LLC

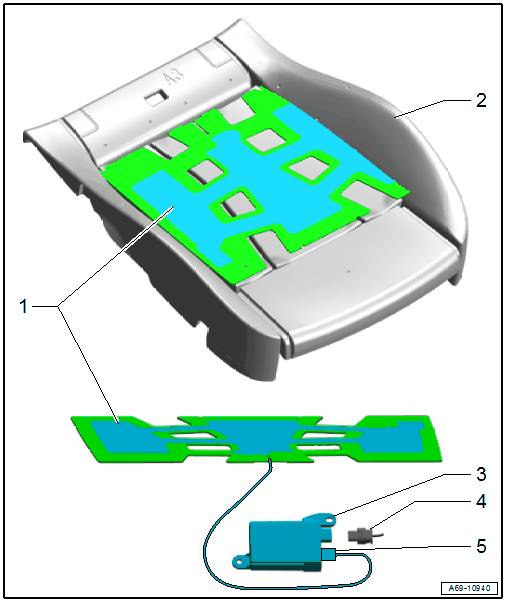

Front Passenger Occupant Detection Sensor -G128-
CAUTION:
- Never disconnect the connector between the Front Passenger Occupant Detection Sensor -G128- and the Passenger Occupant Detection System Control Module -J706-.
- Do not separate the Front Passenger Occupant Detection Sensor -G128- from the seat cushion.
- Removing and Installing. Refer to PASSENGER OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING .
Seat Cushion
CAUTION:
- Do not separate the Front Passenger Occupant Detection Sensor -G128- from the seat cushion.
Passenger Occupant Detection System Control Module -J706-
CAUTION:
Never disconnect the connector between the Front Passenger Occupant Detection Sensor -G128- and the Passenger Occupant Detection System Control Module -J706-.
- Clipped in the storage compartment.
- Removing and Installing. Refer to PASSENGER OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING .
Connector
- Between the connector station under the seat and the Passenger Occupant Detection System Control Module -J706-.
Connector
- For the wires between Front Passenger Occupant Detection Sensor -G128- and Passenger Occupant Detection System Control Module -J706-.
  CAUTION:
  Never disconnect the connector between the Front Passenger Occupant Detection Sensor -G128- and the Passenger Occupant Detection System Control Module -J706-.
