Knock Sensor 1 -G61-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the Engine Temperature Control Actuator -N493-. Refer to Engine Temperature Control Actuator -N493-, REMOVING AND INSTALLING .

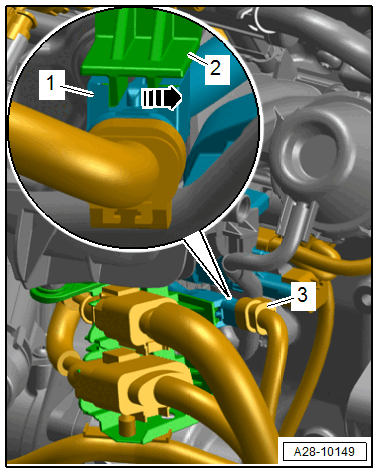

-- Disconnect the connector -3-.
-- Free up the wire -1- for the Knock Sensor 1 -G61- to do so release the catch -arrow- from the bracket -2-.

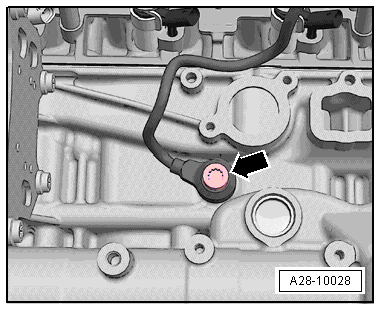

-- Remove the bolt -arrow- and then the Knock Sensor 1 -G61-.
