Engine Speed Sensor -G28-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the noise insulation. Refer to NOISE INSULATION .

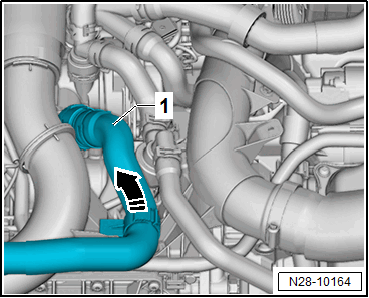

-- Unclip the coolant hose -1- from the charge air pipe and push upward in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

Vehicles with Coolant Valve

Courtesy of AUDI OF AMERICA, LLC

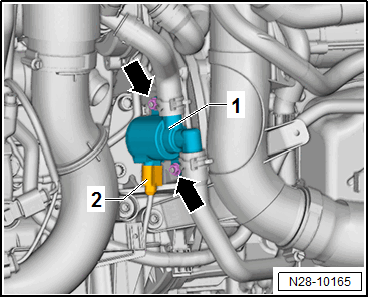

-- Disconnect the connector -2-.

-- Remove the nuts -arrows- and move the Transmission Coolant Valve -N488- to the side.

All Vehicles

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Remove the bolt -arrow- and remove the Engine Speed Sensor -G28-.
