Fuel Injector Seals, Removing And Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi S3, 2017 Audi A3 Quattro, 2017 Audi A3, 2016 Audi S3, and 2016 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Pliers : VAS 211 007 , not illustrated
Torque Adapter: 3390

Fig 1: Identifying Torque Adapter 3390
Courtesy of AUDI OF AMERICA, LLC

Procedure

Courtesy of AUDI OF AMERICA, LLC

-- Remove the corresponding fuel injector. Refer to FUEL INJECTORS, REMOVING AND INSTALLING .

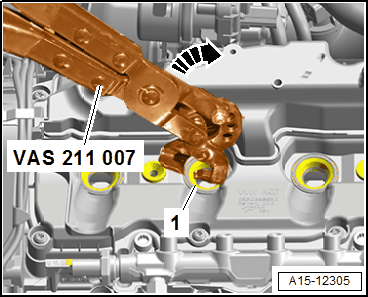

-- Remove the seal -1- using the Pliers : VAS 211 007 -arrow-.

-- Install the new fuel injector seal with a suitable thrust piece, for example Torque Adapter: 3390 , and a short extension -1- all the way in from above -arrow-.

Fig 2: Identifying Torque Adapter And Short Extension

Courtesy of AUDI OF AMERICA, LLC
