Overview - Reducing Agent Delivery Module

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

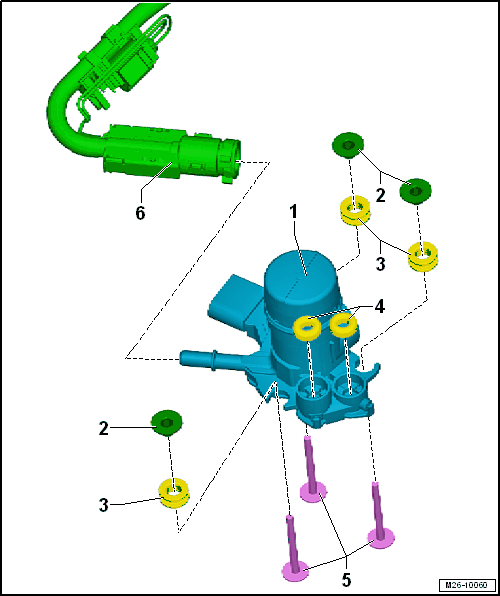

Fig 1: Exploded View Of Reducing Agent Delivery Module

Courtesy of AUDI OF AMERICA, LLC

Reducing Agent Delivery Module
- With:
  - Reducing Agent Pump -V437-
  - Reducing Agent Return Flow Pump -V561-
- Removing and Installing. Refer to REDUCING AGENT DELIVERY MODULE, REMOVING AND INSTALLING .
Spacer Sleeves
- Always Replace After Removing.
- Belong to the repair kit contents
- Quantity: 3
Shock Absorber
- Always Replace After Removing.
- Belong to the repair kit contents
- Quantity: 3
Seal
- Always Replace After Removing.
- Quantity: 2
Bolt
- 6 Nm
- Always Replace After Removing.
- Quantity: 3
Reducing Agent Line
- From the reducing agent delivery module to the Reducing Agent Injector -N474-.
- with Reducing Agent Line Heater (Heating Circuit 2) -Z104-
- Disconnecting the connector. Refer to REDUCING AGENT LINE CONNECTOR, DISCONNECTING .
