Exhaust Gas Temperature Sensor 3 -G495- /Exhaust Gas Temperature Sensor 4 -G648-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Follow the safety precautions when working on the exhaust system. Refer to SAFETY PRECAUTIONS WHEN WORKING ON EXHAUST SYSTEM .

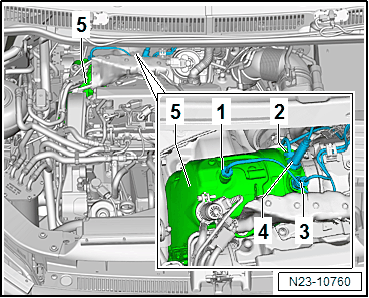

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

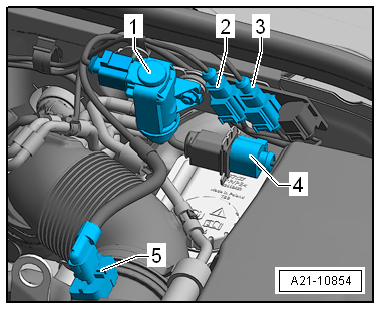

-- Disconnect the connectors and free up the wires.

Courtesy of AUDI OF AMERICA, LLC

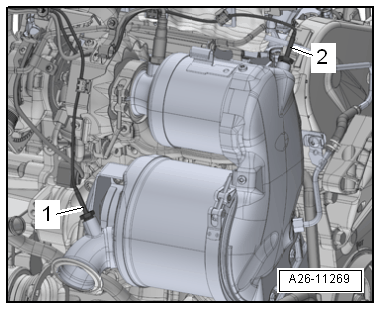

2 - For Exhaust Gas Temperature Sensor 4 -G648-

3 - For Exhaust Gas Temperature Sensor 3 -G495-

Do not cut the wire connection.

-- Remove the corresponding exhaust gas temperature sensor with a tool from the :T10395A .

Courtesy of AUDI OF AMERICA, LLC

For Exhaust Gas Temperature Sensor 4 -G648-
For Exhaust Gas Temperature Sensor 3 -G495-

Depending on the engine installed, there are different installed positions.

Courtesy of AUDI OF AMERICA, LLC
