Exhaust Gas Temperature Sensor 3 -G495- /Exhaust Gas Temperature Sensor 4 -G648-, Removing And Installing: Installing
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Install In Reverse Order Of Removal. Note The Following:
-- The threads from the Exhaust Gas Temperature Sensor 3 -G495- and Exhaust Gas Temperature Sensor 2 -G648- are coated. They must NOT be additionally coated with hot bolt paste.
- Protect the exhaust gas temperature sensor against knocks and impacts. A dropped exhaust gas temperature sensor may not be used again.

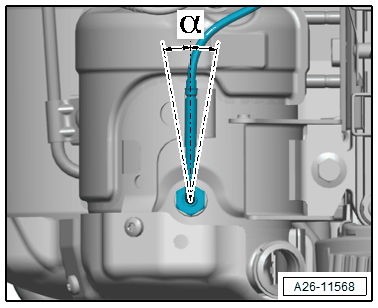

Installed location for the Exhaust Gas Temperature Sensor 3 -G495- :
- Angle α = 5°.
-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
