Exhaust Gas Temperature Sensor 2 -G448-, Removing And Installing: Installing
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and Note The Following:
-- The thread on the Exhaust Gas Temperature Sensor 2 -G448- is coated. It must NOT be coated with additional hot bolt paste.
- Protect the exhaust gas temperature sensor against knocks and impacts. A dropped exhaust gas temperature sensor may not be used again.

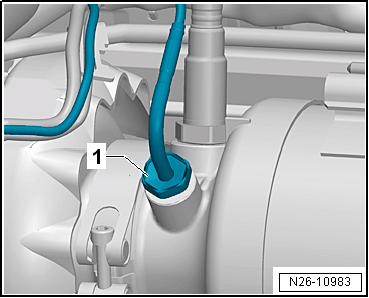

Vehicles Without SCR System:
Installation position for the Exhaust Gas Temperature Sensor 2 -G448- :
- The angled shaft -1- must point upward vertically.

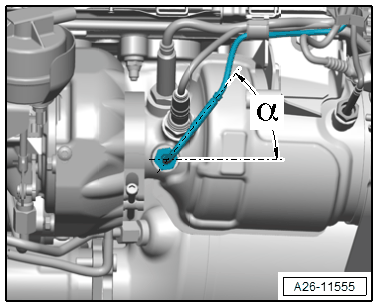

Vehicles With SCR System:
Installation position for the Exhaust Gas Temperature Sensor 2 -G448- :
- Angle α = 80°.
Continuation For All Vehicles:
-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
