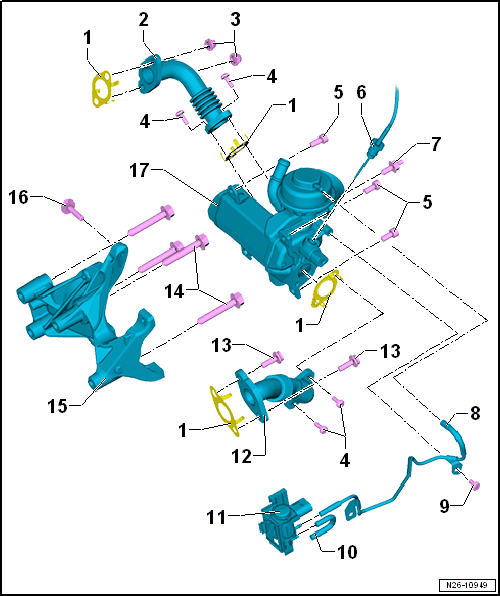

EGR Overview: Notes
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Seal
- Always Replace After Removing
- Connecting pipe
- To exhaust manifold
- Nut
- Always Replace After Removing
- 20 Nm
- Bolt
- Always Replace After Removing
- 8 Nm
- Bolt
- Always Replace After Removing
- 20 Nm
- EGR Temperature Sensor -G98-
- Removing and installing. Refer to EGR TEMPERATURE SENSOR -G98-, REMOVING AND INSTALLING .
- 60 Nm
- Double Bolt
- Always Replace After Removing
- 20 Nm
- Vacuum Line
- Bolt
- 8 Nm
- Vacuum Line
- EGR Cooler Switch-Over Valve -N345-
- Component location EGR COOLER SWITCH-OVER VALVEN345 1
- Connecting pipe
- To cylinder head
- Bolt
- Always Replace After Removing
- 20 Nm
- Bolt
- Follow the tightening sequence EGR COOLER BRACKET TIGHTENING SPECIFICATION AND SEQUENCE .
- Bracket
- For cooler for Exhaust Gas Recirculation (EGR)
- Fastened to cylinder block
- Follow the tightening sequence EGR COOLER BRACKET TIGHTENING SPECIFICATION AND SEQUENCE .
- Bolt
- 20 Nm
- EGR Cooler
- Removing and installing. Refer to EGR COOLER, REMOVING AND INSTALLING, ENGINE CODES CRFA, AND CRFC .
