Overview - Emissions Control System, Vehicles With Emissions Control Module: Notes
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

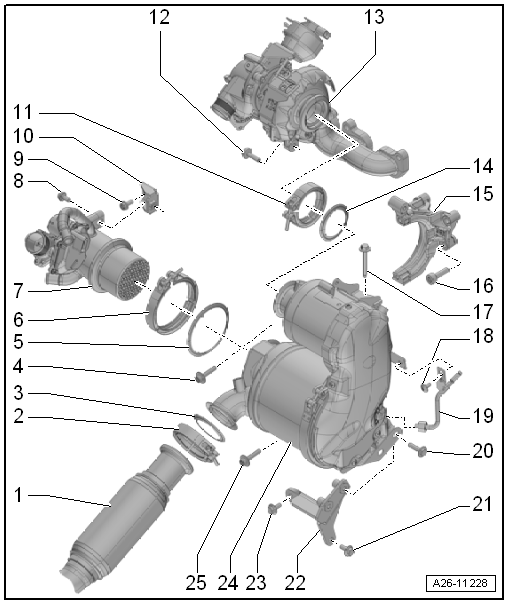

- Follow the safety precautions when working on the exhaust system. Refer to SAFETY PRECAUTIONS WHEN WORKING ON EXHAUST SYSTEM .
- Front Exhaust Pipe
- Removing and Installing. Refer to FRONT EXHAUST PIPE, REMOVING AND INSTALLING .
- Exhaust System, Installing without Tension. Refer to EXHAUST SYSTEM, INSTALLING AND ALIGNING .
- Screw-Type Clamp
- 7 Nm
- Always Replace After Removing.
- Installation position. Refer to INSTALLED LOCATION OF THE FRONT EXHAUST PIPE SCREW CLAMP .
- Seal
- Always Replace After Removing.
- Note the installation position. Refer to INSTALLED LOCATION OF THE SEAL BETWEEN THE EMISSIONS CONTROL MODULE AND FRONT EXHAUST PIPE. .
- Bolt
- Tightening specification and sequence. Refer to EMISSIONS CONTROL MODULE TIGHTENING SEQUENCE. .
- Seal
- Always Replace After Removing.
- Screw-Type Clamp
- Always Replace After Removing.
- Tightening specification and sequence. Refer to EGR COOLER - TIGHTENING SPECIFICATION AND SEQUENCE .
- EGR Cooler
- Removing and Installing. Refer to EGR COOLER, REMOVING AND INSTALLING .
- Bolt
- Tightening specification and sequence. Refer to EMISSIONS CONTROL MODULE TIGHTENING SEQUENCE. .
- Bolt
- Tightening specification and sequence. Refer to EMISSIONS CONTROL MODULE TIGHTENING SEQUENCE. .
- Bracket
- For the EGR cooler
- Screw-Type Clamp
- Always Replace After Removing.
- Installation position. Refer to INSTALLATION POSITION OF EMISSIONS CONTROL MODULE SCREW-TYPE CLAMP .
- Bolt
- Tightening specification and sequence. Refer to OVERVIEW - EMISSIONS CONTROL SYSTEM, VEHICLES WITH EMISSIONS CONTROL MODULE -Step 16- .
- Turbocharger
- Removing and Installing. Refer to TURBOCHARGER, REMOVING AND INSTALLING .
- Seal
- Always Replace After Removing.
- Place on the catalytic converter.
- Bracket
- For the emissions control module
- With lifter
- Preparing the lifter for installation. Refer to INSTALLING .
- Bolt
Tightening specification and sequence. Refer to figure graphic below..
- Bolt
- Tightening specification and sequence. Refer to EMISSIONS CONTROL MODULE TIGHTENING SEQUENCE. .
- Bolt
- 9 Nm
- Dial Gauge
- Union nut tightening specification 45 Nm
- To the Differential Pressure Sensor -G505-
- Depending on the date of manufacture there is an additional dial gauge to the Exhaust Pressure Sensor 1 -G450-
- Bolt
- Tightening specification and sequence. Refer to EMISSIONS CONTROL MODULE TIGHTENING SEQUENCE. .
- Bolt
- Tightening specification and sequence. Refer to EMISSIONS CONTROL MODULE TIGHTENING SEQUENCE. .
- Bracket
- For the emissions control module
- With lifters
- Preparing the lifters for installation. Refer to Installing => .
- Bolt
- Tightening specification and sequence. Refer to EMISSIONS CONTROL MODULE TIGHTENING SEQUENCE. .
- Emissions Control Module
- Particulate Filter with Catalytic Converter
- Removing and Installing. Refer to EMISSIONS CONTROL MODULE, REMOVING AND INSTALLING .
- Bolt
- Tightening specification and sequence. Refer to EMISSIONS CONTROL MODULE TIGHTENING SEQUENCE. .
