Emissions Control Module Bracket 2 - Tightening Specifications And Sequence

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
GWWA26-11287Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in steps according to the sequence:

Step Bolts Tightening Specification
1. -3- Install by hand all the way
2. -1- 20 Nm
3. -3- 20 Nm

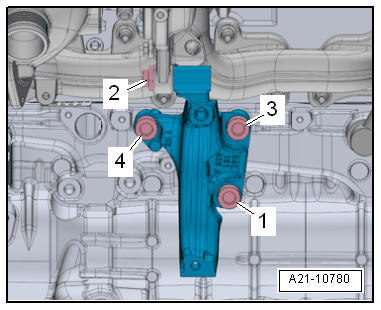

GWWA21-10780Courtesy of AUDI OF AMERICA, LLC
