Emissions Control Module, Removing And Installing: Notes
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools And Workshop Equipment Required
- Hex Ball Socket:3247
- Assembly Aid :T10511
- Calibration Tool:T10512

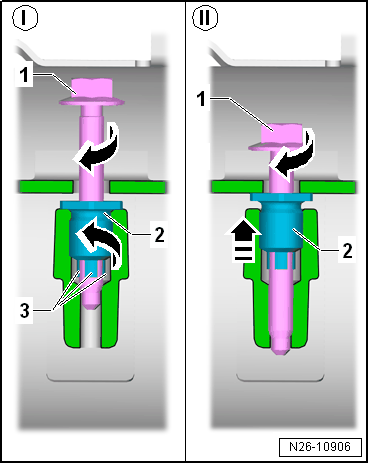

The emissions control module is among other things attached to the engine with four adjusting elements. These lifters outside have left-hand threads. When bolting the bolt -1- takes up the lifter -2- due to the friction on the guides -3-. Via the left threads the lifter and the bolt head move opposite, despite turning the bolt clockwise from which the play between the components is adjusted. The lifter must be easily tunable on its left threads otherwise the guides on the bolt do not bring enough friction to take up the lifter. Do not use any lubricants in the guides, so that the friction is not reduced.
