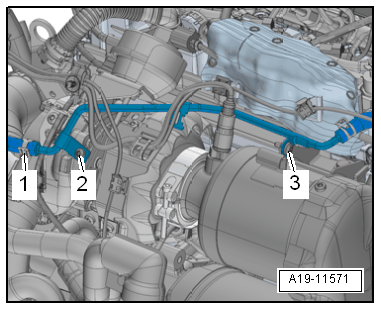

Vehicles With Coolant Pipe Above Emissions Control Module

Courtesy of AUDI OF AMERICA, LLC

-- Connect the coolant hose and place the hose clamp -1-.

-- Install the bolts -2- and -3- and tighten to 10 Nm.

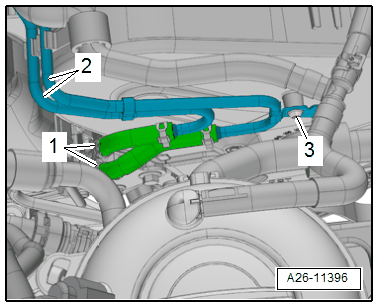

Vehicles With Two Differential Pressure Lines:

Courtesy of AUDI OF AMERICA, LLC

-- Connect the hoses and place the hose clamps -1-.

-- Tighten the bolt -3-.

-- Attach the connectors -3, 4 and 5-.

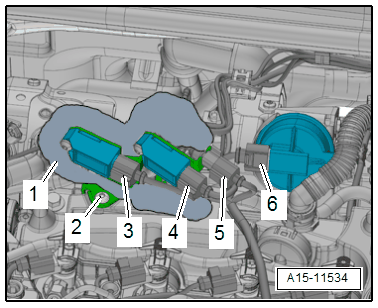

Courtesy of AUDI OF AMERICA, LLC

-- Attach the differential pressure sensors to the cylinder head cover. Refer to OVERVIEW - HEATED OXYGEN SENSOR .

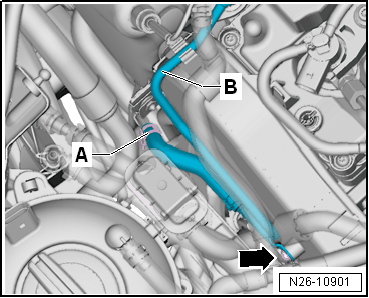

Vehicles With One Differential Pressure Line:

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolt -arrow-.

-- Connect the hose and set the hose clamps -A-.

-- Attach the differential pressure sensor to the cylinder head cover. Refer to OVERVIEW - HEATED OXYGEN SENSOR .

Continuation For All Vehicles:

-- If equipped, install the Oxygen Sensor After Catalytic Converter -G130-. Refer to OXYGEN SENSOR AFTER THREE WAY CATALYTIC CONVERTER -G130-, REMOVING AND INSTALLING .

-- Install the subframe. Refer to SUBFRAME WITH STEERING GEAR, REMOVING AND INSTALLING .

-- Install the front exhaust pipe. Refer to FRONT EXHAUST PIPE, REMOVING AND INSTALLING .

-- Fill the coolant. Refer to COOLANT CIRCUIT FILLING AND BLEEDING: / COOLANT CIRCUIT FILLING AND BLEEDING [CRUA, DEJA] / COOLANT, FILLING (BLEEDING) [CNSB, CNTC] .

-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- After replacing the emissions control module an adaptation must be performed.

-- Connect the Vehicle Diagnostic Tester.

-- Turn on the ignition and select the following menu items on the Vehicle Diagnostic Tester:

• Diagnostic-Capable Systems
• Engine Electronics
• Engine Electronic Functions
• 01 - Replacement Engine Control Module Or Particulate Filter
