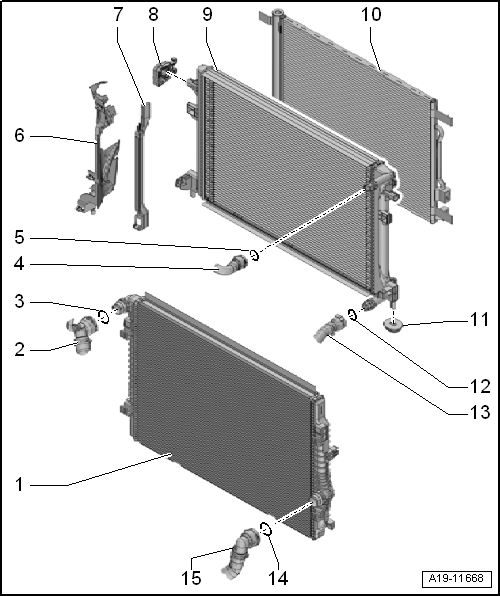

Radiator Version 2
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Radiator
- Removing and installing. Refer to RADIATOR, REMOVING AND INSTALLING .
- Change the coolant after replacing
- Coolant Hose
- Lift the retaining clamp to remove
- Connecting. Refer to CONNECT THE COOLANT HOSE TO THE COUPLING
- O-ring
- Always replace after removing
- Coat with coolant
- Coolant Hose
- Lift the retaining clamp to remove
- Connecting. Refer to CONNECT THE COOLANT HOSE TO THE COUPLING
- O-ring
- Always replace after removing
- Coat with coolant
- Air Guide
- Air Guide
- Rubber Bushing
- For the radiator
- Cooler for the Charge Air Cooling Circuit
- Removing and installing. Refer to RADIATOR, REMOVING AND INSTALLING .
- Condenser
- For removing and installing. Refer to OVERVIEW - CONDENSER, A/C COMPRESSOR, REFRIGERANT LINES AND EXPANSION VALVE / CONDENSER, REMOVING AND INSTALLING .
- Rubber Bushing
- For the radiator
- O-ring
- Always replace after removing
- Coat with coolant
- Coolant Hose
- Lift the retaining clamp to remove
- Connecting. Refer to CONNECT THE COOLANT HOSE TO THE COUPLING
- O-ring
- Always replace after removing
- Coat with coolant
- Coolant Hose
- Lift the retaining clamp to remove
- Connecting. Refer to CONNECT THE COOLANT HOSE TO THE COUPLING
