Radiator Version 1

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

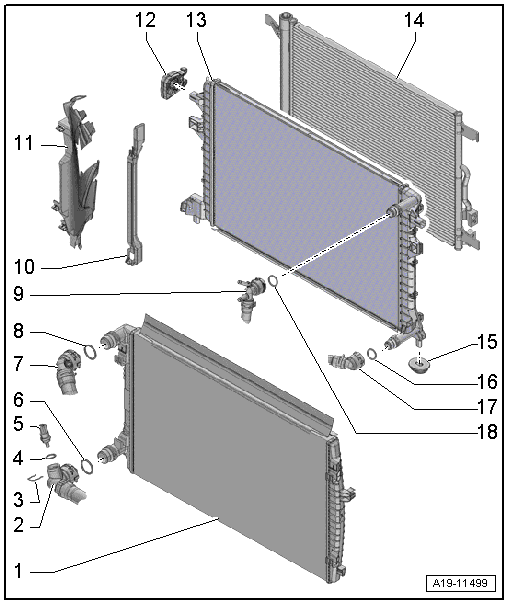

Fig 1: Exploded View Of Radiator Version 1

Courtesy of AUDI OF AMERICA, LLC

Radiator
- Removing and installing. Refer to RADIATOR, REMOVING AND INSTALLING .
- Change the coolant after replacing
Coolant Hose
- Lift the retaining clamp to remove
- Connecting. Refer to CONNECT THE COOLANT HOSE TO THE COUPLING
Not Installed
Not Installed
Not Installed
O-ring
- Always replace after removing
- Coat with coolant
Coolant Hose
- Lift the retaining clamp to remove
- Connecting. Refer to CONNECT THE COOLANT HOSE TO THE COUPLING
O-ring
- Always replace after removing
- Coat with coolant
Coolant Hose
- Lift the retaining clamp to remove
- Connecting. Refer to CONNECT THE COOLANT HOSE TO THE COUPLING
Air Guide
Air Guide
Rubber Bushing
- For the radiator
Cooler for the Charge Air Cooling Circuit
- Removing and installing. Refer to RADIATOR, REMOVING AND INSTALLING .
Condenser
- For removing and installing. Refer to OVERVIEW - CONDENSER, A/C COMPRESSOR, REFRIGERANT LINES AND EXPANSION VALVE / CONDENSER, REMOVING AND INSTALLING .
Rubber Bushing
- For the radiator
O-ring
- Always replace after removing
- Coat with coolant
Coolant Hose
- Lift the retaining clamp to remove
- Connecting. Refer to CONNECT THE COOLANT HOSE TO THE COUPLING
O-ring
- Always replace after removing
- Coat with coolant
