Coolant, Extracting
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
TIP:

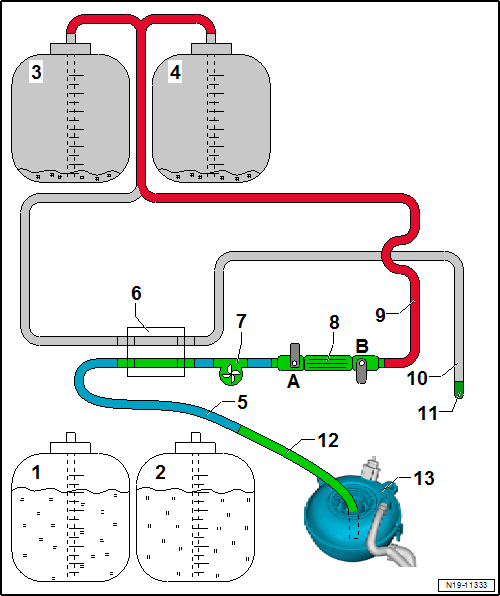

- To extract the coolant use the extraction adapter ) COOLING SYSTEM, FLUSHING - Extraction Adapter
-- Remove the suction hose -5- from the reservoir -2-.
-- Attach the extraction adapter -12- on the connector coupling from the suction hose -5-.
-- Switch on the pump -7- and open the shut-off valves -A- and -B- on the valve block -8-.
-- Extract the excess coolant using the extraction adapter -12-.
-- Connect the shut-off valves on the valve block and switch off the pump.
