Supercharger, Removing And Installing: Removing

NOTE:

Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

Before testing or performing a repair, check all air duct pipes and hoses and vacuum lines for leaks and secure seating.

-- Remove the supercharger ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING, SUPERCHARGER RIBBED BELT .

-- Disconnect the coolant hoses -2- with : 3094 .

Fig 1: Coolant Pipe Clamps And Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1-.

-- Remove the reinforcement brace. Refer to OVERVIEW - LOCK CARRIER .

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Place the container of the : VAS5014 or the : VAS6208 underneath.

Fig 2: Coolant Pipes

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamps -1- and remove the coolant hoses from the coolant pipes on the supercharger.

-- Remove the bolt -2- and push the coolant pipe to the side.

-- Disconnect the connectors -1 and 2-.

Fig 3: Identifying Connectors

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -3-.

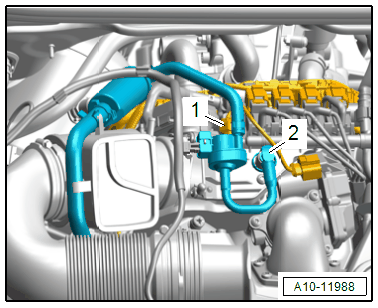

-- Disconnect the connector -1- from the EVAP Canister Purge Regulator Valve 1 -N80-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the vacuum hose -2- by pressing the release buttons on both sides.

-- Disengage the EVAP Canister Purge Regulator Valve 1 -N80- from the bracket free it up and move to the side with the hoses connected.

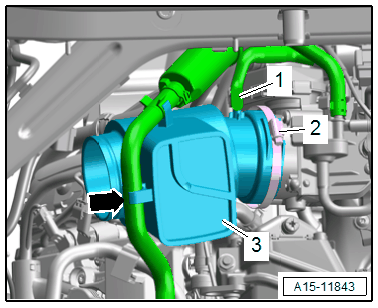

-- Remove the vacuum hose -1- from the resonator -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamp -2- and remove the resonator.

NOTE:

Ignore the -arrow-.

-- Disconnect the connector -arrow- from the Throttle Valve Control Module -J338-.

Fig 4: Identifying Connector -1- To Throttle Valve Control Module -J338-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -arrow- on the Regulating Flap Control Unit -J808-.

Fig 5: Control Valve Control Unit -J808- And Harness Connector

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -1-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Mark the vacuum hoses for reinstallation.

-- Disconnect the vacuum hoses -4- and the vacuum line -3-.

-- Disconnect the vacuum hose -2- free up and move to the side.

-- Release the catches in direction of -arrow- and push the wiring duct -1- to the rear.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the crankcase ventilation valve -3- from the bracket.

-- Disconnect the connector -2- on the Intake Air Temperature Sensor -G42- / Manifold Absolute Pressure Sensor -G71-.

-- Disconnect the connectors -1 and 2- and free up the wire.

Fig 6: Identifying Connectors And Nuts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows- and supercharger with charge air cooler assembly upward, and at the same time pay attention to the clearance of the bypass valve.

-- Seal off the opening on the supercharger and on the charge air circuit with plugs from the : VAS6122 or with clean cloths.

-- Remove the noise insulation.
