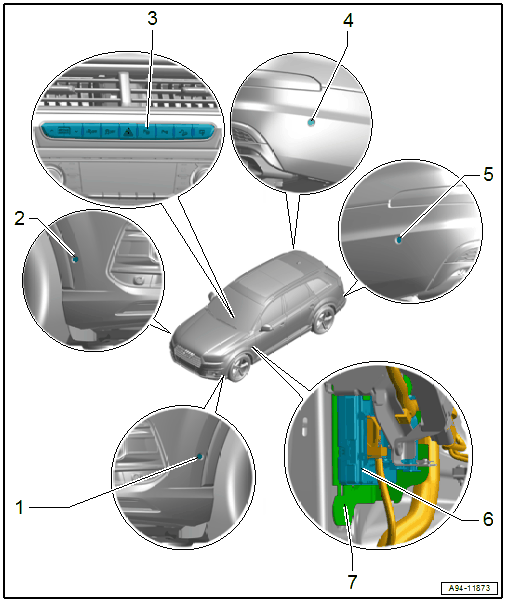

Overview - Parallel Parking Assist

Courtesy of AUDI OF AMERICA, LLC

Left Front Parallel Parking Assistance Sensor -G568-
- Removing and installing. Refer to FRONT SENSOR, REMOVING AND INSTALLING .
Right Front Parallel Parking Assistance Sensor -G569-
- Removing and installing. Refer to FRONT SENSOR, REMOVING AND INSTALLING .
Parallel Parking Assistance Button -E581-
- A component of the Control Unit 1 for Driving and Convenience Functions -E791-
- Removing and installing. Refer to BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING, Control Unit 1 for Driving and Convenience Functions -E791- .
Right Rear Parallel Parking Assistance Sensor -G717-
- Removing and installing. Refer to REAR SENSOR, REMOVING AND INSTALLING .
Left Rear Parallel Parking Assistance Sensor -G716-
- Removing and installing. Refer to REAR SENSOR, REMOVING AND INSTALLING .
Vehicle Electrical System Control Module -J519-
- Component location overview. Refer to OVERVIEW - CONTROL MODULES .
Bracket
- For vehicle electrical system control module
