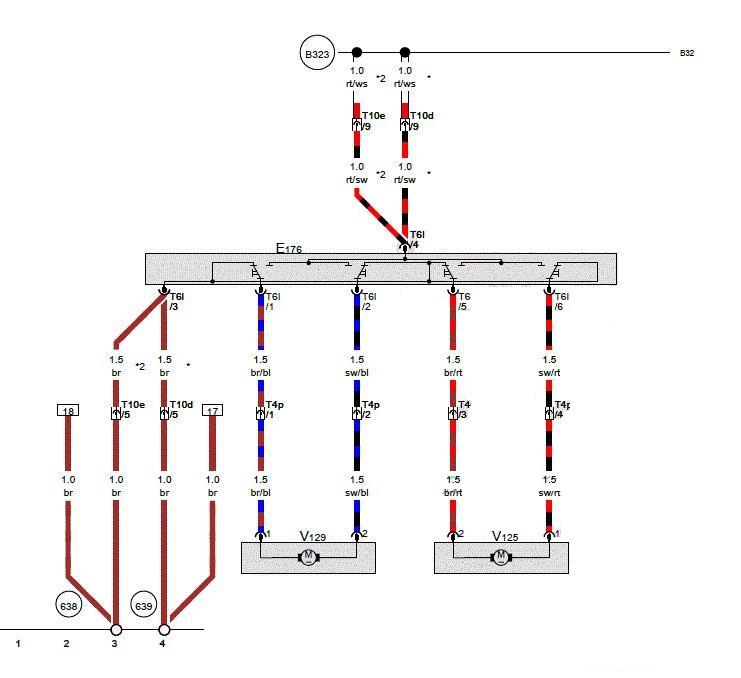

Driver Seat Lumbar Support Curvature Adjustment Motor, Driver Seat Lumbar Support Height Adjustment Motor
E176 Driver seat lumbar support adjustment switch
T4p 4-pin connector, in the seat
T6l 6-pin connector
T10d 10-pin connector, in the coupling point for the left front seat
T10e 10-pin connector, in the coupling point for the right front seat
V125 Driver seat lumbar support curvature adjustment motor
V129 Driver seat lumbar support height adjustment motor
(638) Ground connection on right A-pillar
(639) Ground connection on left A-pillar
(B323) Positive connection 9 (30a) (in main wiring harness)
* Only for LHD vehicles
*2 Only for RHD vehicles
