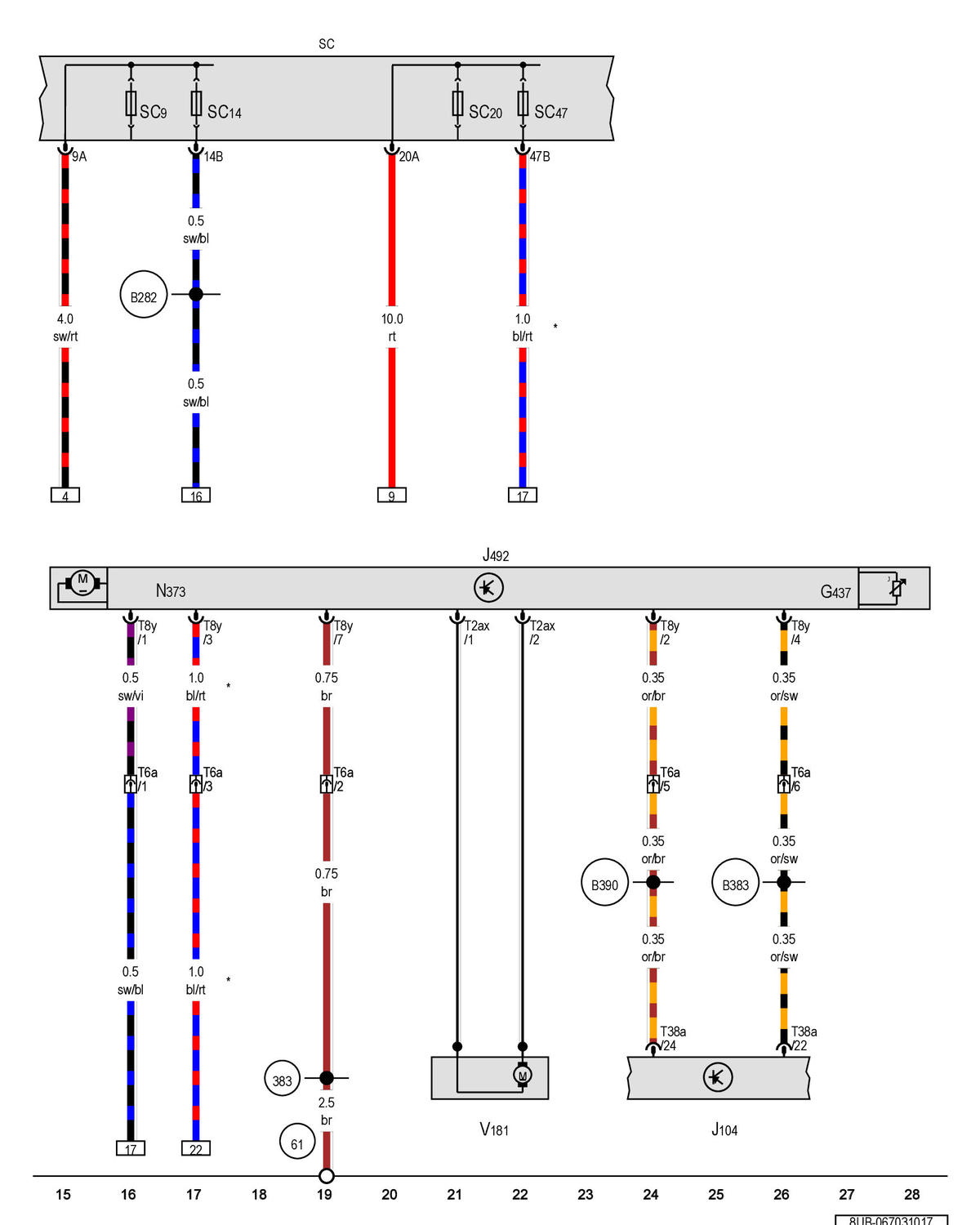

All Wheel Drive Control Module, Final Drive Clutch Control Valve

G437  Oil Pressure/Temperature Sensor

J104  ABS Control Module Type:BT, Slpdok:, Aim:BTJ104

J492  All Wheel Drive Control Module Type:BT, Slpdok:, Aim:BTJ492

N373  Final Drive Clutch Control Valve

SC  Fuse Panel C Type:BT, Slpdok:, Aim:BTSC-

SC9  Fuse 9 (On Fuse Panel C) Type:BT, Slpdok:, Aim:BTSC-

SC14  Fuse 14 (On Fuse Panel C) Type:BT, Slpdok:, Aim:BTSC-

SC20  Fuse 20 (On Fuse Panel C) Type:BT, Slpdok:, Aim:BTSC-

SC47  Fuse 47 (On Fuse Panel C) Type:BT, Slpdok:, Aim:BTSC-

T2ax  2-Pin Connector, Black

T6a  6-Pin Connector, Under the Rear Bench Seat, Black

T8y  8-Pin Connector, Black

T38a  38-Pin Connector, Brown Type:BT, Slpdok:, Aim:BTT38a

V181  All Wheel Drive Clutch Pump

(61) Ground Connection on Left C-Pillar Type:VB, Slpdok:, Aim:VB61

(383) Ground Connection 18 (in Main Wiring Harness)

(B282) Positive Connection 6 (15a) (in Main Wiring Harness)

(B383) Powertrain CAN Bus High Connection 1 (in Main Wiring Harness)

(B390) Powertrain CAN Bus Low Connection 1 (in Main Wiring Harness)

*  Different Wire Color Possible
