Seat Pan Cover And Padding, Removing And Installing, Sport Seat: Removing
- Follow all safety precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
-- Remove the backrest. Refer to FRONT BACKREST, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
-- Remove the support with seat depth adjustment seat cushion and seat cover. Refer to SEAT DEPTH ADJUSTER, REMOVING AND INSTALLING .
-- Versions with passenger seat child seat anchor: remove the child seat anchor. Refer to FRONT CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
-- Equipment level with storage compartment: remove the storage compartment. Refer to STORAGE COMPARTMENT, REMOVING AND INSTALLING .
-- Remove the sill panel side seat side trim with the bracket.
- Manual Sport seat. Refer to SEAT SIDE TRIM ON SILL PANEL SIDE, REMOVING AND INSTALLING, MANUAL FRONT SEAT .
- Power Sport seat. Refer to SEAT SIDE TRIM ON SILL PANEL SIDE, REMOVING AND INSTALLING, POWER FRONT SEAT .
-- Disconnect and free up the connectors.

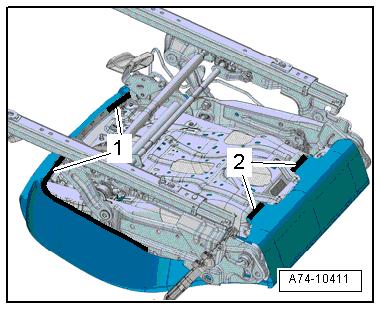

-- Disengage the molding -1- on the side, and the molding -2- in the area of the rear seat cover using the Backrest Panel Tool:3370 .
-- Remove the seat cover with the seat cushion from the seat pan. If necessary, free up the wiring harness for the seat heating and passenger occupant detection system.
The seat depth adjuster support (plastic) remains on the seat cushion.
