Overview - Seat Pan Cover And Cushion, Standard/Folding Seat

NOTE:

The illustration shows versions with a fabric cover.

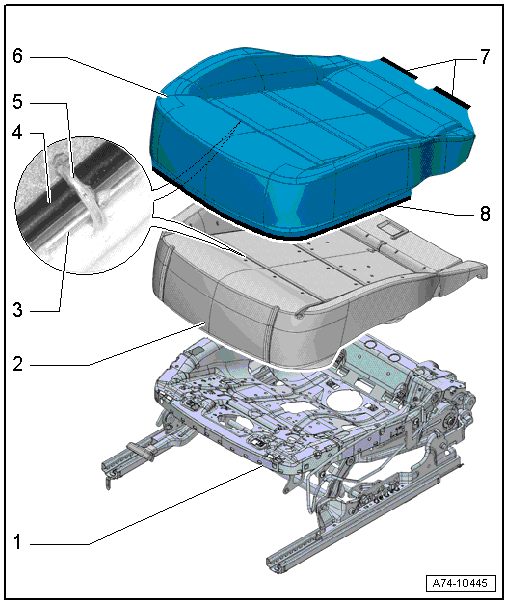

Fig 1: Exploded View Of Seat Pan Cover And Cushion (Standard/Folding Seat)

Courtesy of AUDI OF AMERICA, LLC

1. Seat Pan
2. Seat Cushion
   • Seat cover and cushion, removing and installing. Refer to SEAT PAN COVER AND PADDING, REMOVING AND INSTALLING, STANDARD/FOLDING SEAT .
   • Seat cover and cushion, removing and installing. Refer to SEAT PAN COVER AND CUSHION, SEPARATING, STANDARD/FOLDING SEAT .
   • Allocation. Refer to the parts information .
3. Wire
   • embedded in the foam of the seat cushion
   • for attachment of seat cover to seat cushion
4. Contour Strip
   • sewn into seat cover
   • for attachment of seat cover to seat cushion
5. Upholstery Clip
   • For attachment of seat cover to seat cushion
   • Replace
   • Install at the same location with Upholstery Clip Pliers:VAG1634  .
6. Seat Cover
   • Seat cover and cushion, removing and installing. Refer to SEAT PAN COVER AND PADDING, REMOVING AND INSTALLING, STANDARD/FOLDING SEAT .
   • Seat cover and cushion, removing and installing. Refer to SEAT PAN COVER AND CUSHION, SEPARATING, STANDARD/FOLDING SEAT .
   • Allocation. Refer to the parts information .
   • Make sure there are no folds after installing
7. Molding
   • Sewn into seat cover
   • For engaging seat cover on seat pan upper frame
   • Make sure it fits correctly in the upper seat frame
8. Molding
   • Sewn into seat cover
   • For engaging seat cover on seat pan upper frame
   • Make sure it fits correctly in the upper seat frame
