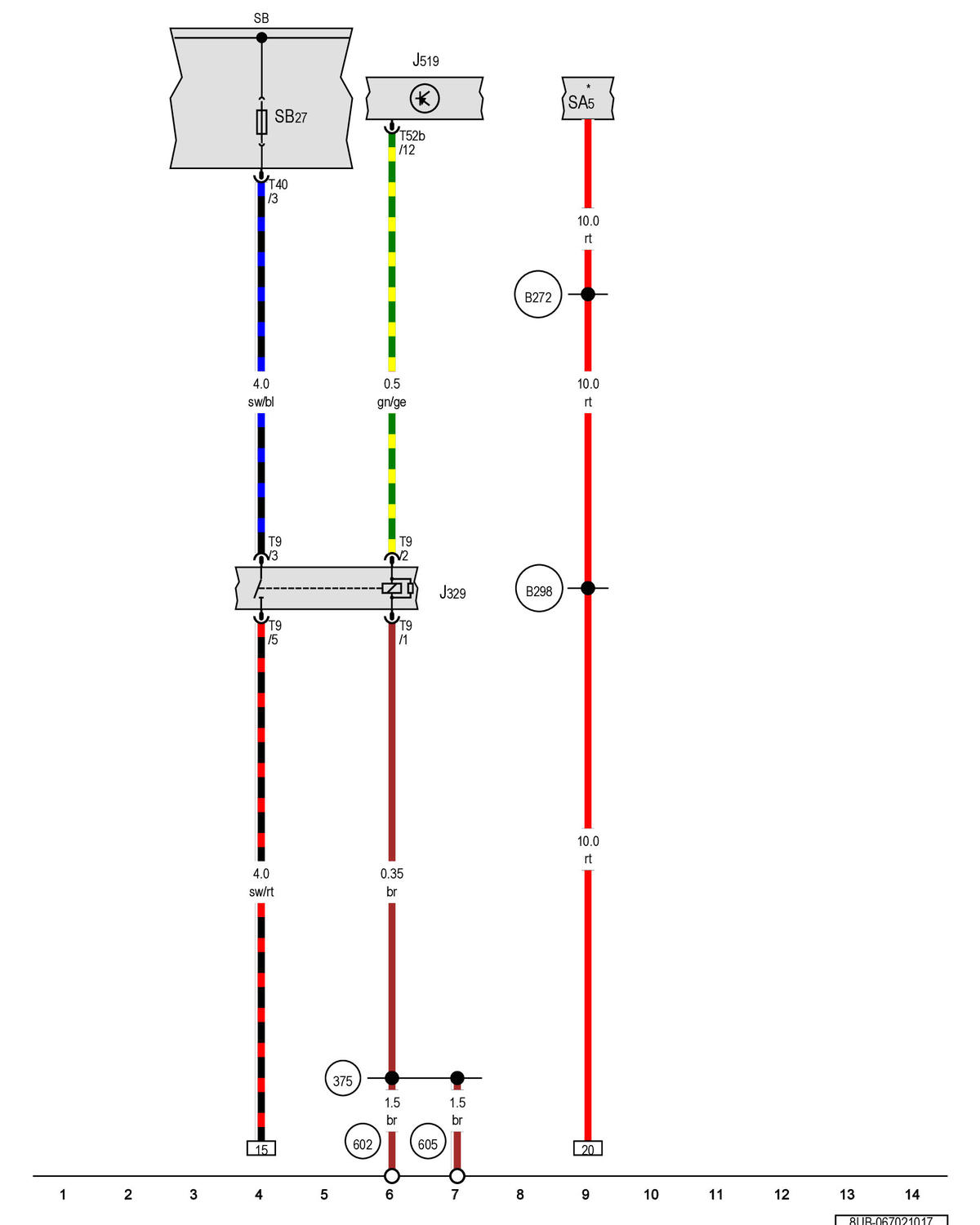

Terminal 15 Power Supply Relay

J329  Terminal 15 Power Supply Relay

J519  Vehicle Electrical System Control Module

SA5  Fuse 5 (On Fuse Panel A)

SB  Fuse Panel B

SB27  Fuse 27 (On Fuse Panel B)

T9  9-Pin Connector, Black

T40  40-Pin Connector, Black

T52b  52-Pin Connector, Naturally Cloudy

(375) Ground Connection 10 (in Main Wiring Harness)

(602) Ground Connection in Left Front Footwell

(605) Ground Connection on Upper Steering Column

(B272) Positive Connection (30) (in Main Wiring Harness)

(B298) Positive Connection 2 (30) (in Main Wiring Harness)

*  Refer to Applicable Battery Wiring Diagram
