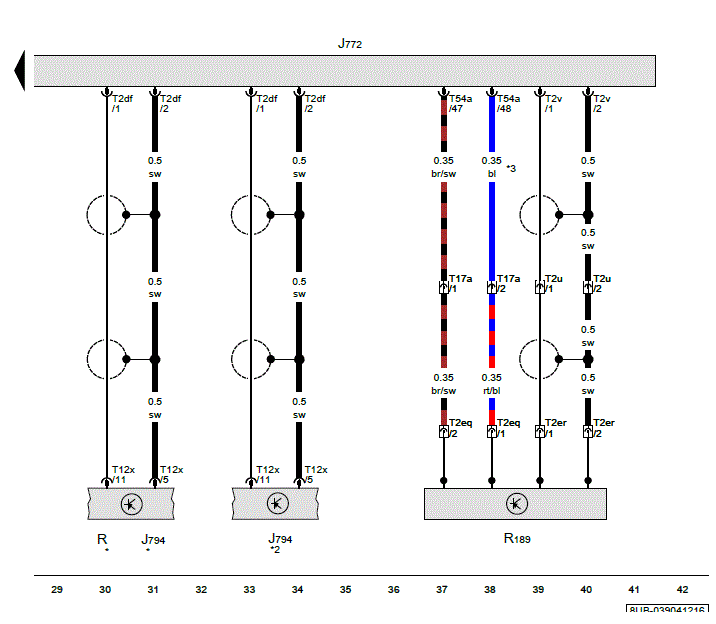

Rearview Camera System Control Module, Rearview Camera
J772 Rearview camera system control module
J794 Information electronics control module 1
R Radio
R189 Rearview camera
T2df 2-pin connector
T2eq 2-pin connector, under the rearview camera cover
T2er 2-pin connector, under the rearview camera cover
T2u 2-pin connector, Rear lid coupling point
T2v 2-pin connector
T12x 12-pin connector
T17a 17-pin connector, Rear lid coupling point
T54a 54-pin connector
* Only for vehicles with concert radio system
*2 Only for vehicles with MMI
*3 The color of the wires depends on vehicle equipment
