Exhaust Pipes/Mufflers, Separating
WARNING: This page is about a different car, the 2016 Audi Q3 Quattro, 2016 Audi Q3, 2015 Audi Q3 Quattro, and 2015 Audi Q3. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Chain Pipe Cutter:VAS6254
- A separating point has been provided in the connecting pipe for individual replacement of the center or rear muffler.
- The separating point is marked by a depression around the circumference of the exhaust pipe.

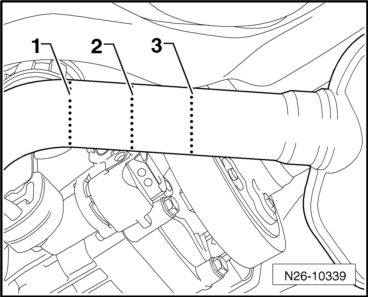

-- Disconnect the exhaust pipe at the separating point -2- at a right angle using the :VAS6254 .
-- When installing, position the clamping sleeve central to the side markings -1 and 3-.
-- Install the rear clamping sleeve so that the bolt ends -arrow- do not project beyond the lower edge of clamping sleeve.
- Threaded connection points to the rear.
-- Install the exhaust system free of tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
