Lower Timing Chain Cover, Replacing: Removing

WARNING: This page is about a different car, the 2016 Audi Q3 Quattro, 2016 Audi Q3, 2015 Audi Q3 Quattro, and 2015 Audi Q3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Unclip the left and right sealing piece -1- using the :80-200 .

Courtesy of AUDI OF AMERICA, LLC

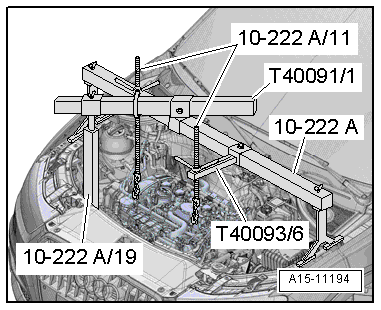

-- Position the :10-222A on the upper edges of the left and right web plates, as well as the right longitudinal member as shown.

Courtesy of AUDI OF AMERICA, LLC

-- Attach the carabiner hook of the :10-222A/11 to the engine lifting eye and lightly preload the spindle.

-- Remove the engine mount. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .

-- Remove the ribbed belt tensioner. Refer to RIBBED BELT TENSIONER, REMOVING AND INSTALLING .

-- Remove the vibration damper. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .

-- Remove the bolts -1 through 3- and then remove the engine support.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

To remove the engine support, slightly lift or lower the engine if necessary.

-- Remove the bolts -arrows- and remove the oil dipstick tube from the timing chain cover.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the Wastegate Bypass Regulator Valve -N75- from the turbocharger -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the turbocharger support -1-.

-- Remove the bolts -1 through 15-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

There may be only eight bolts installed, depending on the version.

-- Pry off the lower timing chain cover.
