Overview - Battery, Engine Compartment Battery Version 2

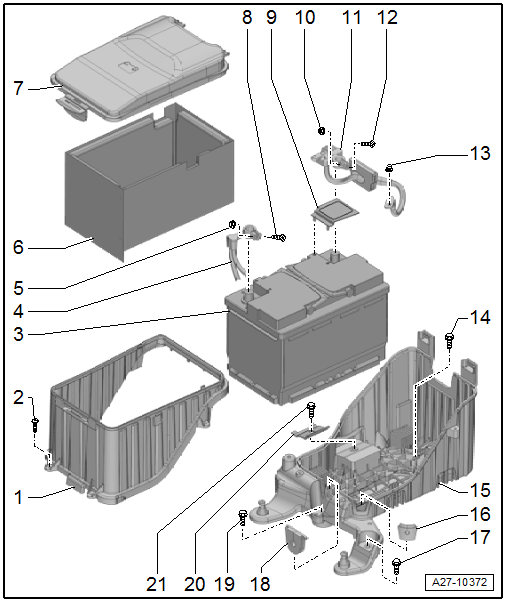

Fig 1: Battery, Engine Compartment Battery Version 2 Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Front Battery Trim Panel
2. Bolt
   • 3 Nm
   • Quantity: 4
3. Battery
   • Removing and installing. Refer to BATTERY IN ENGINE COMPARTMENT, REMOVING AND INSTALLING, VERSION 2 .
4. Positive Cable
   • Disconnecting and connecting. Refer to BATTERY IN ENGINE COMPARTMENT, REMOVING AND INSTALLING, VERSION 2 .
5. Nut
   • 5.4 Nm
6. Heat Protection Sleeve
7. Battery Cover
8. Bolt
9. Negative Terminal Cover
10. Nut
    • 5.4 Nm
11. Ground Cable
    • With Battery Monitoring Control Module -J367-
    • Disconnecting and connecting. Refer to BATTERY IN ENGINE COMPARTMENT, DISCONNECTING AND CONNECTING .
    • Removing and installing. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING, ENGINE COMPARTMENT BATTERY VERSION 2 .
12. Bolt
13. Nut
    • 20 Nm
14. Bolt
    • 9 Nm
15. Battery Tray
    • With the rear battery trim panel
    • Removing and installing. Refer to BATTERY TRAY, REMOVING AND INSTALLING, VERSION 2 .
16. Grommet
    • For the positive cable from the engine compartment E-box
17. Bolt
    • 9 Nm
18. Grommet
    • For the positive cable to the starter
19. Bolt
    • 9 Nm
20. Retaining Bracket
21. Bolt
    • 20 Nm
