Overview - Battery, Engine Compartment Battery Version 1

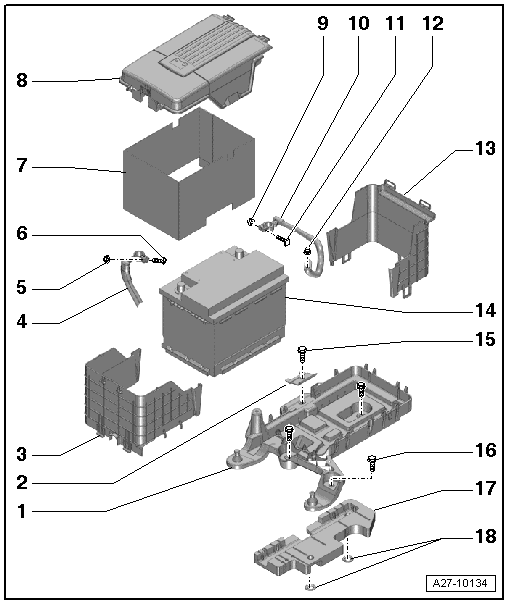

Fig 1: Battery, Engine Compartment Battery Version 1 Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Battery Tray
   • Removing and installing. Refer to BATTERY TRAY, REMOVING AND INSTALLING, VERSION 1 .
2. Retaining Bracket
   • There are different versions. Refer to the Parts Catalog.
3. Front Battery Trim Panel
4. Positive Cable
   • Disconnecting and connecting. Refer to BATTERY IN ENGINE COMPARTMENT, REMOVING AND INSTALLING, VERSION 1 .
5. Nut
   • 5.4 Nm
6. Bolt
7. Heat Protection Sleeve
   • There are different versions. Refer to the Parts Catalog.
8. Battery Cover
9. Nut
   • 5.4 Nm
10. Ground Cable
    • Disconnecting and connecting. Refer to BATTERY IN ENGINE COMPARTMENT, DISCONNECTING AND CONNECTING .

      Vehicles with a start/Stop System

    • With Battery Monitoring Control Module -J367-
    • Removing and installing. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING, ENGINE COMPARTMENT BATTERY VERSION 1 .
11. Bolt
12. Nut
    • 20 Nm
13. Rear Battery Trim Panel
14. Battery
    • Removing and installing. Refer to BATTERY IN ENGINE COMPARTMENT, REMOVING AND INSTALLING, VERSION 1 .
15. Bolt
    • 22 Nm
16. Bolt
    • 9 Nm
17. Heat Shield
18. Lock Washer
