Overview - Battery, Battery In Luggage Compartment

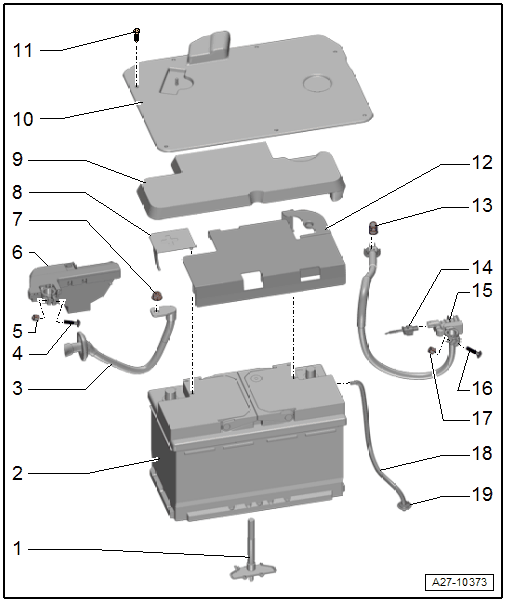

Fig 1: Battery In Luggage Compartment Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Battery Bracket
   • 10 Nm
   • With integrated threaded pin
2. Battery
   • Removing and installing. Refer to BATTERY IN LUGGAGE COMPARTMENT, REMOVING AND INSTALLING .
3. Positive Cable
   • To engine
4. Bolt
5. Nut
   • 6 Nm
6. Main Fuse Box
   • In rear right of luggage compartment on battery
   • Disconnecting and connecting. Refer to BATTERY IN LUGGAGE COMPARTMENT, DISCONNECTING AND CONNECTING .
7. Nut
   • 20 Nm
8. Positive Terminal Cover
9. Battery Heat Shield
10. Battery Cover
11. Bolt
    • 2 Nm
    • Quantity: 7
12. Negative Terminal Cover
13. Nut
    • 20 Nm
14. Electrical Wire
    • For the Battery Monitoring Control Module -J367-
    • Follow the sequence when connecting the ground cable. Refer to BATTERY IN LUGGAGE COMPARTMENT, DISCONNECTING AND CONNECTING
15. Ground Cable
    • With Battery Monitoring Control Module -J367-
    • Disconnecting and connecting. Refer to BATTERY IN LUGGAGE COMPARTMENT, DISCONNECTING AND CONNECTING .
    • Removing and installing. Refer to GROUND CABLE WITH Battery Monitoring Control Module - J367-, REMOVING AND INSTALLING, BATTERY IN THE LUGGAGE COMPARTMENT .
16. Bolt
17. Nut
    • 6 Nm
18. Hose for the Central Venting System
19. Grommet
    • For the hose for the central venting system
