Special Tools
Special tools and workshop equipment required
- Puller - Seal Lever: VW681
- Drive Sleeve: 30-20
- Counterhold - Crankshaft Sprocket: 3415
- Seal Installer - Shaft Seal Ring: T10019
- Puller - Kukko 3 Jaw - 100x100mm: 12/1
- Torque Wrench 1601: VAG1601
Special tools and workshop equipment required
- Torque Wrench 1331 5-50Nm: VAG1331
- Torque Wrench 1332 40-200Nm: VAG1332
- Engine and Gearbox Jack: VAS6931 with Universal Transmission Support: VAG1359/2
Special tools and workshop equipment required
- Locking Pin Driver: 30-505
- Bearing Installer - Clutch Housing/Gearbox Bearing: VW554
- Bushing Installer - Rear Axle Beam: 3128
- Rear Bushing Tool Press Piece: T40033/1
- Assembly Tool Kit - Traverse: T10030/5
- Bearing Installer - Component: 3346/2
- Bearing Installer - Control Arm Nut: 3346/3
Special tools and workshop equipment required
- Thrust Piece 3291/1 from the Bushing Tool Set: 3291
- Spindle from the Bushing Tool Set: 3292
- Thrust pieces 3348 and 3348/1 from the Bearing Installer - Multiple Use: 3348
- -1- Puller - Kukko Internal - 46-56mm: 21/7
- -4- Puller - Kukko Counterstay: 22/2

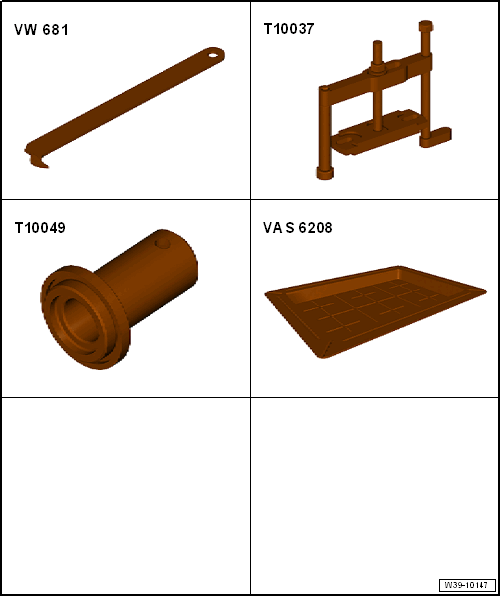

Special tools and workshop equipment required
- Puller - Seal Lever: VW681
- Seal Installer - Flange Shaft: T10049
- Torque Wrench 1331 5-50Nm: VAG1331
- Shop Crane - Drip Tray: VAS6208 , Puller - Flanged Shaft: T10037
Special tools and workshop equipment required
- Tensioning Strap: T10038
- Guide Pins: T10093
- Counterhold - Multiple Use: T10172A
with Counterhold - Kit - Adapter 5-9: T10172/5
- Retaining Strap: T40155
(2 pieces)
- Torque Wrench 1331 5-50Nm: VAG1331
- Torque Wrench 1783 - 2-10Nm: VAG1783
- Shop Crane: VAS6100
- Charging Device For BorgWarner Coupling 2: VAS6291A
- Charging Device For BorgWarner Coupling 2 - Adapter 3: VAS6291/3
- Oil Filler - Adapter 6: VAS6262/6
or Oil Filler - Adapter: VAS6262/7
- Charging Device For BorgWarner Coupling 2: VAS6291A
- Slide Hammer Set: VW771
with Slide Hammer Set - Pulling Hook: VW771/13
and Slide Hammer Set - Adapter 44: VW771/44
- Puller - Kukko Internal - 12-16mm: 21/1
- Used Oil Collection and Extraction Unit: SMN372500
- Puller - Kukko Counterstay: 22/1
- Puller - Kukko Puller - 50-110mm Width, 150mm Length: 18/0
- Transmission Support - Bolt: 3282/34
