Component Location Overview - Trim Panels

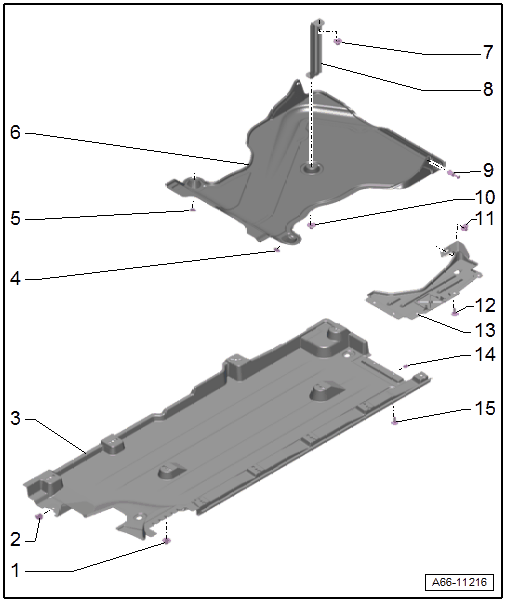

Fig 1: Trim Panels Component Locations

Courtesy of AUDI OF AMERICA, LLC

1. Nut
   • 2 Nm
   • Quantity: 11
2. Spring Nut
   • For the quick release
3. Underbody Panel
   • Removing and installing. Refer to UNDERBODY PANELS, REMOVING AND INSTALLING .
4. Nut
   • 2.5 Nm
5. Nut
   • 2.5 Nm
6. Center Rear Underbody Panel
   • Only for Front Wheel Drive (FWD)
   • Removing and installing. Refer to REAR CENTER UNDERBODY PANEL, REMOVING AND INSTALLING .
7. Nut
   • 2.5 Nm
8. Bracket
9. Expanding Rivet
   • Quantity: 2
10. Nut
    • 2.5 Nm
11. Nut
    • 2.5 Nm
12. Bolt
    • 2.5 Nm
    • Quantity: 3
13. Rear Underbody Trim
    • Removing and installing. Refer to UNDERBODY PANELS, REMOVING AND INSTALLING .
14. Metal Nut
    • Quantity: 2
15. Bolt
    • 2.5 Nm
    • Quantity: 2
