Overview - Noise Insulation

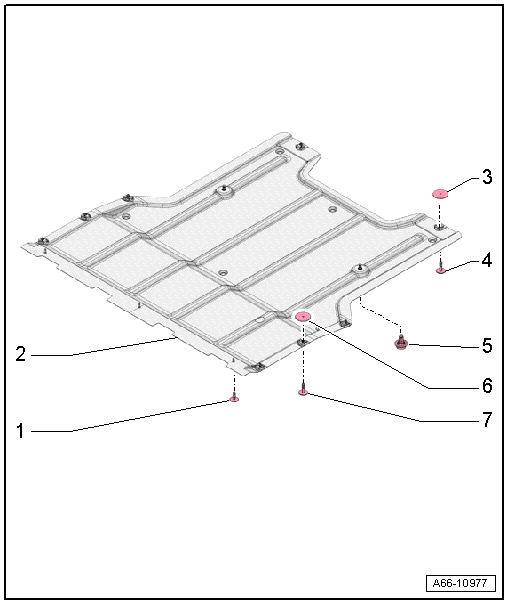

Fig 1: Noise Insulation Component Locations

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 2.5 Nm
- Quantity: 3
Front Noise Insulation
- For the engine
- Removing and installing. Refer to NOISE INSULATION, REMOVING AND INSTALLING .
Rubber Washer
- Quantity: 2
Quick Release
- Quantity: 2
M8 bolt
- 6 Nm
- Through MY 2014: quantity - 2
- From MY 2015: quantity - 3
Rubber Washer
- Quantity: 6
Quick Release
- Quantity: 6
