Overview - Bench Seat/Single Seat

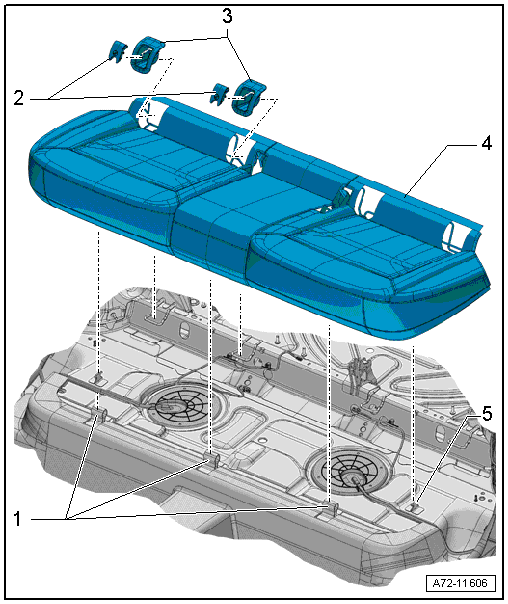

Fig 1: Exploded View Of Bench Seat/Single Seat

Courtesy of AUDI OF AMERICA, LLC

Front Mount
- For securing the rear bench seat
- Welded to the floor panel.
Cover
- For child seat anchor
- Quantity: 4
- Removing and installing. Refer to CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING, REAR .
- Must be secure in the anchor
Guide
- For child seat anchor
- Quantity: 4
- Removing and installing. Refer to CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING, REAR .
- Must be secure in the anchor
Rear Bench Seat
- Removing and installing. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .
- The seat frame must correctly in the mount.
Side Mount
- Quantity: 2
- For securing the rear bench seat
- Welded to the floor panel.
