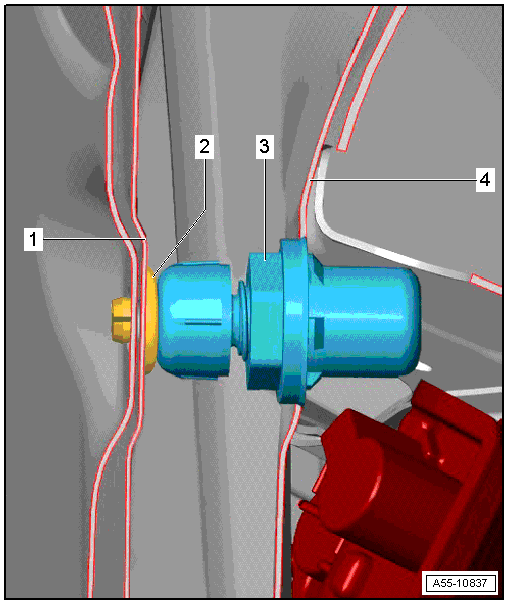

Adjusting Buffer, Adjusting

Courtesy of AUDI OF AMERICA, LLC

1. Side Panel
2. Stop
   • Removing and Installing. Refer to ADJUSTING BUFFER, REMOVING AND INSTALLING .
3. Adjusting Buffer
   • Removing and Installing
   • There is an adjusting screw for adjusting the height.
   • When rear lid is adjusted correctly, adjusting buffer must make contact with light pre-tension with stop on rear lid side.
4. Rear Lid
   • When adjusted correctly, adjusting buffer -3- must contact stop buffer -2- with light pretension when rear lid is closed.

Fig 1: Rear Lid Adjusting Screw

Courtesy of AUDI OF AMERICA, LLC

-- Before adjusting rear lid, install adjusting screw -2- with protective cap -1- completely in adjusting buffer -3-

-- Remove the adjusting screw -2- just enough until the cap -1- makes contact with light pre-tension with stop on rear lid side when the rear lid is closed.

-- Check whether lid sits without play and in flush position by pushing or pulling on the side edge of rear lid below rear window.

-- Repeat the adjustment if necessary.
