Rear Lid Seal, Removing And Installing

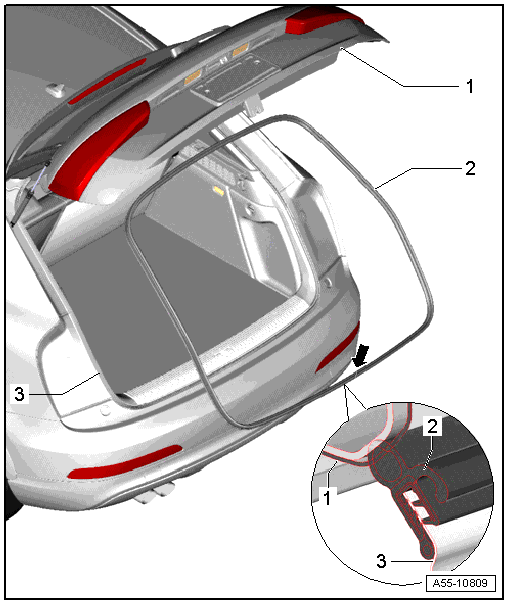

Fig 1: Rear Lid Seal Component Location
GWWA55-10809Courtesy of AUDI OF AMERICA, LLC
  1. Rear Lid
  2. Rear Lid Seal
    • To remove, remove seal from body flange.
    • When installing, align the seal with the joint -arrow- with the marking in the center of the vehicle.
    • Beginning at the seam, press the seal all around onto the body flange.
  3. Body Flange
