Overview - Rear Lid, Rear Lid Motor

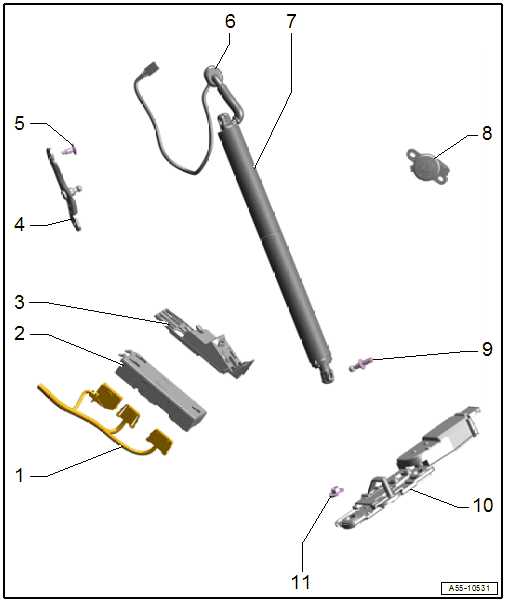

Fig 1: Exploded View Of Rear Lid, Rear Lid Motor

Courtesy of AUDI OF AMERICA, LLC

Connectors
Rear Lid Control Module -J605-
- Removing and installing. Refer to Rear Lid Control Module -J605-, REMOVING AND INSTALLING .
Bracket
- For Rear Lid Control Module -J605-
Mount
- With ball pin
Bolt
- 30 Nm
- Quantity: 2
Grommet
Rear Lid Motor
- Rear Lid Motor 1 -V444- with Sensor in Rear Lid Motor 1 -G745- on the left side of the vehicle
- Rear Lid Motor 2 -V445- with Sensor in Rear Lid Motor 2 -G746- on the right side of the vehicle
- Removing and installing. Refer to REAR LID MOTOR 1 AND 2 -V444- / -V445-, REMOVING AND INSTALLING .
Rear Lid Warning Buzzer -H32-
- Removing and installing. Refer to Controls .
Ball Pin
- 21 Nm
Rear Lid Lock Unit -F256-
- With a Rear Lid Closing Assist Motor -V382-
- Removing and installing. Refer to STRIKER, REMOVING AND INSTALLING, VEHICLES WITH Rear Lid Lock Unit -F256- .
- Adjusting. Refer to ADJUST USING CATCH, VEHICLES WITH REAR LID LOCK UNIT - REAR LID, ADJUSTING.
Nut
- 21 Nm
- Quantity: 2
