Lid Latch, Removing And Installing

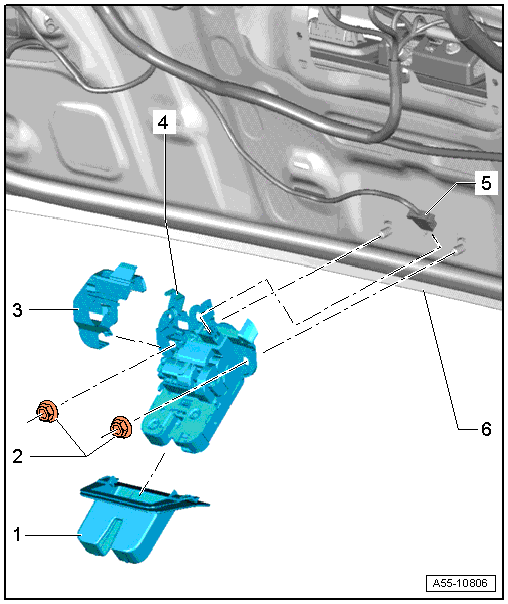

Fig 1: Lid Latch Components Location
GWWA55-10806Courtesy of AUDI OF AMERICA, LLC
  1. Cover
    • After removing, remove the lid trim from the lid lock.
  2. Nut
    • 21 Nm
  3. Cover for Lid Latch
    • When installing, cover must engage audibly in lid latch.
  4. Lid Latch
    • Before removal, remove the lid latch cover.
    • The rear lid lower trim panel is removed. Refer to Lower Rear Lid Trim Panel, Removing And Installing .
    • Disconnect the connector.
    • Remove nuts and remove lid latch.
    • Remove the lid latch with the clip from the centering hole.
  5. Connector
  6. Rear Lid
