Hinges, Removing And Installing

CAUTION:

This procedure contains mandatory replaceable parts. Refer to component overview (see OVERVIEW - REAR LID ) and parts information prior to starting procedure.

Mandatory Replacement Parts

Seal

NOTE:

Remove and install the left and right hinges one after the other when replacing the hinges on both sides.

Mark the position of the hinges on the rear lid before removing them.

Courtesy of AUDI OF AMERICA, LLC

Lid Hinge
Removing:

-- Remove the trim on the D-pillars. Refer to D-Pillar Trim Panel, Removing And Installing .

-- Remove the rear roof grab handles. Refer to Roof Grab Handle, Removing And Installing .

-- Lower the rear headliner in the area of the nut for the lid hinges.

NOTE:
Support the rear lid to keep it from falling down and too prevent damage the rear lid or the vehicle body.

-- First remove the bolts -2- from the lid hinge.

-- Remove the nut -6- on the roof.

Installing:

-- Align the hinge to the markings and tighten the upper bolts -2- on the rear lid to the tightening specification.

-- Install the nut -6-.

-- Adjust the gap between the rear lid and the roof, and tighten the nut to the tightening specification.

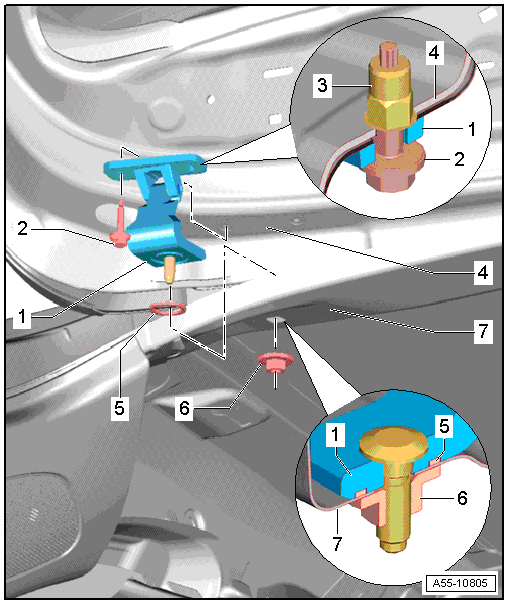

Bolt
- 12 Nm
Internally Threaded Pop Rivet
Rear Lid
Seal
- Replace
Nut
- 25 Nm
