Release Cable Coupling

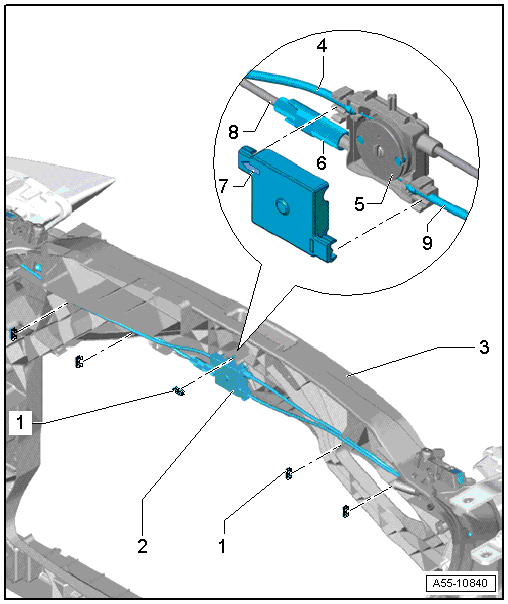

-- Remove clips -1- and lift the release cables -8- and -9- on both sides toward the hood latches.
-- To remove the coupling -2-, release the retainers -arrows- on the front of the lock carrier -3- and push them to the rear out of the bracket.
-- Engage the release cable to the vehicle interior -4- into the coupling roller -5- as illustrated.
-- Press the release cable into the mount on the housing.
-- Install the housing cover -7- so that the arrow points toward the release cable inside the passenger compartment.
-- Adjust the release cable -8- using the knurl -6- inside the passenger compartment so that the hood catches unlock evenly.
Engage the Release Cable in the Coupling
-- Install the release cable -1- into the roller -3- inside the passenger compartment as illustrated.
-- Press the release cable into the mount on the housing.
-- Install the housing cover -2- so that the arrow points toward the release cable inside the passenger compartment -1-.
-- Turn the knurled piece -4- to adjust the release cable.
