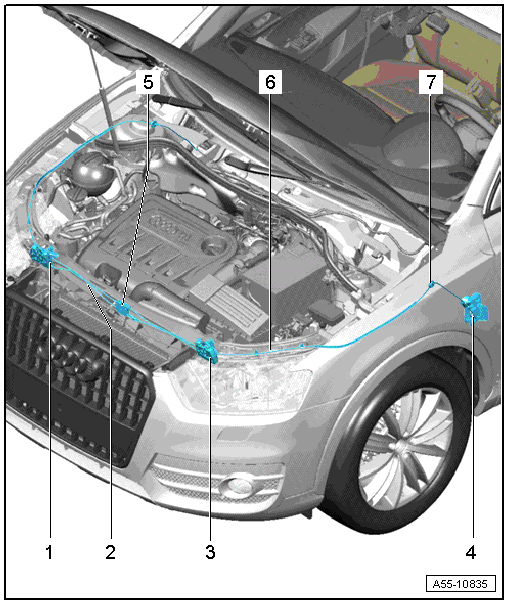

Overview - Latch Release Cable
- Right Hood Latch
- Removing and installing. Refer to HOOD LATCH, REMOVING AND INSTALLING .
- Hood Latch Cable
- Removing and installing. Refer to RELEASE CABLE, REMOVING AND INSTALLING .
- Left Hood Latch
- Removing and installing. Refer to HOOD LATCH, REMOVING AND INSTALLING .
- Operating Lever
- Disengage release cable. Refer to OPERATING LEVER - OVERVIEW - OPERATING LEVER, COVER.
- Cable Coupling
-- Disengage the release cable inside the passenger compartment before removing the lock carrier and when removing the operating lever.
- Hood Release Lever Cable
- Release cable to the operating lever in the vehicle interior.
- Grommet
- Make sure it fits correctly when installing it. The grommet must be pushed all the way into the bulkhead.
