Hood, Adjusting

Special tools and workshop equipment required

• Gauge - Gap Adjustment:3371

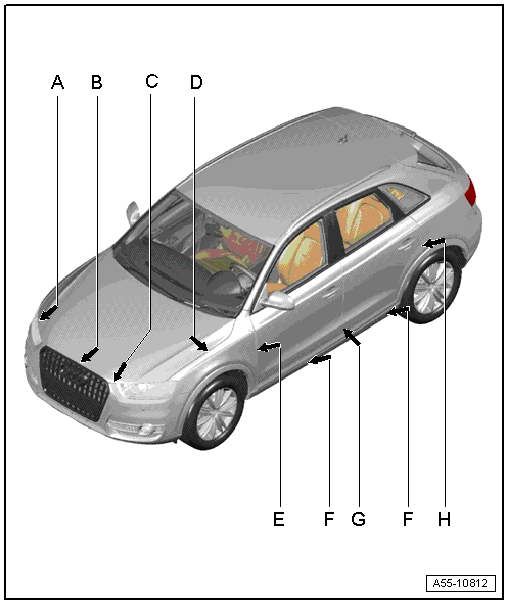

Gap Dimensions for Hood

Courtesy of AUDI OF AMERICA, LLC

• Dimension -A- = 4.5 mm
• Dimension -B- = 4.5 mm
• Dimension -C- = 4.5 mm
• Dimension -D- = 3.0 mm centered

Height Adjustment Stop Buffer

Courtesy of AUDI OF AMERICA, LLC

1. Adjusting Buffer
   NOTE:

   The adjusting buffers are used to adjust the height of the lid.

   • The adjusting buffer must lightly contact the lock carrier when the hood is closed.
2. Hood

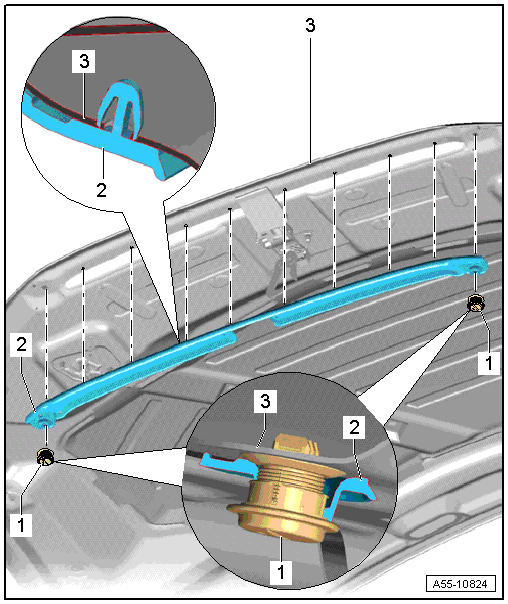

Hood Impact Guard, Replacing

Courtesy of AUDI OF AMERICA, LLC

1. Clip
2. Impact Guard
   • To remove, remove the clip from the hood and then remove the impact guard.
   • When installing push from the outside toward the inside with the clips.
3. Hood
