Hinges, Removing And Installing

-- Before removing a hood hinge, support the hood or secure it against falling.

-- Remove the gas-filled strut. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .

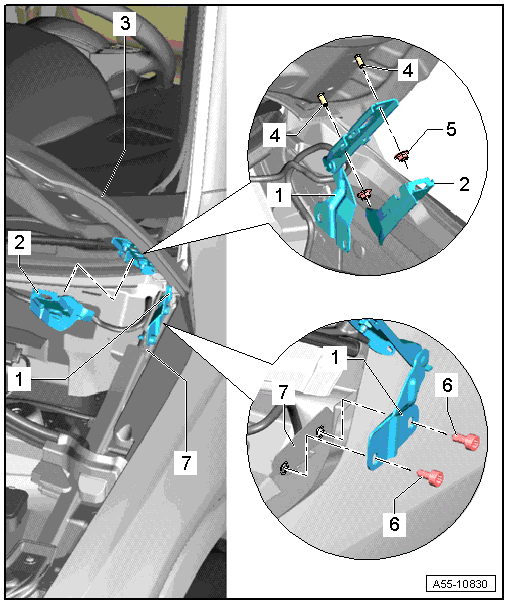

-- Unclip and remove the cover from the lid hinges.

-- Remove the bolts -6- and nuts -5-.

-- Align with the markings -arrows- in reverse order.
