Overview - Rearview Camera System
The rear view camera system assists the driver when driving in reverse by providing the driver with an image of the traffic situation behind the vehicle via the Front Information Display Control Head -J685-.
The rear view camera system is switched on when engaging the reverse gear. The system can be activated manually by pressing the Parking Aid Button -E266- in the center console (optional).
The rear view camera system consists of the following components:
- Rearview Camera -R189-
- Rearview Camera System Control Module -J772-
- Information Electronics Control Module 1 -J794-
- Steering wheel with Steering Angle Sensor -G85-
Other control modules may be installed as optional equipment.
It is not permitted to install an auxiliary license plate for vehicles with rear view camera system as it could impair the function of the rear view camera system.
Perform the Fault Finding with the Vehicle Diagnostic Tester.

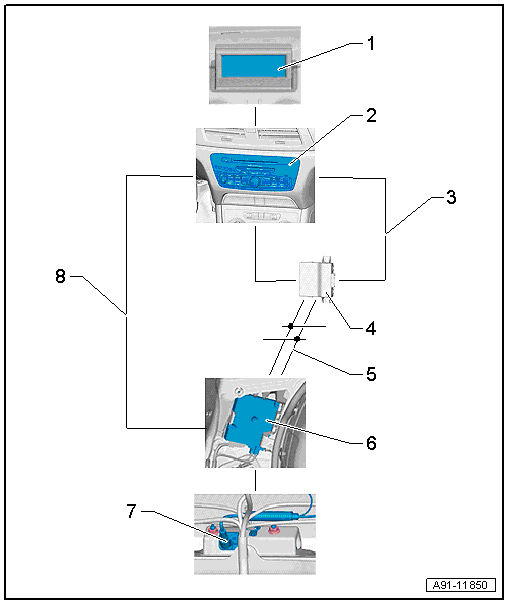

- Front Information Display Control Head -J685-
- In center of the instrument panel
- Information Electronics Control Module 1 -J794-
- Inside the instrument panel
- MOST Bus
- Data Bus On Board Diagnostic Interface -J533-
- Behind the driver side left compartment
- CAN bus, Convenience
- Rearview Camera System Control Module -J772-
- Behind the luggage compartment trim panel on the left side
- Rearview Camera -R189-
- In the rear lid
- FBAS wire to the Information Electronics Control Module 1 -J794-

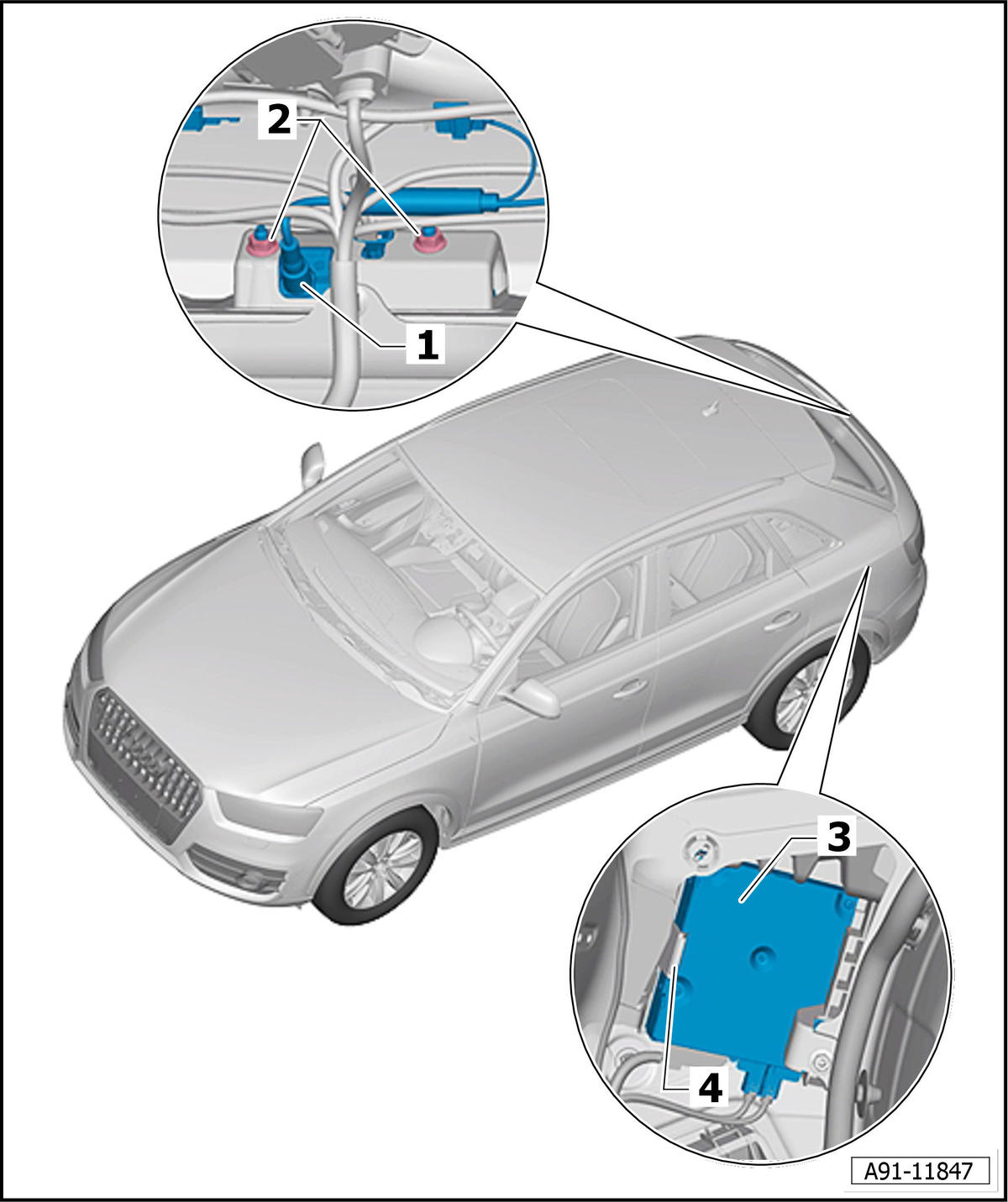

- Rearview Camera -R189- in handle button
- Removing and installing. Refer to Rearview Camera -R189-, REMOVING AND INSTALLING .
- Calibrating. Refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
- Nut
- 6 Nm
- Quantity: 2
- Rearview Camera System Control Module -J772-
- Connector assignment. Refer to CONNECTOR ASSIGNMENTS .
- Removing and installing. Refer to Rearview Camera System Control Module -J772-, REMOVING AND INSTALLING .
- Calibrating. Refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
- Retainer
